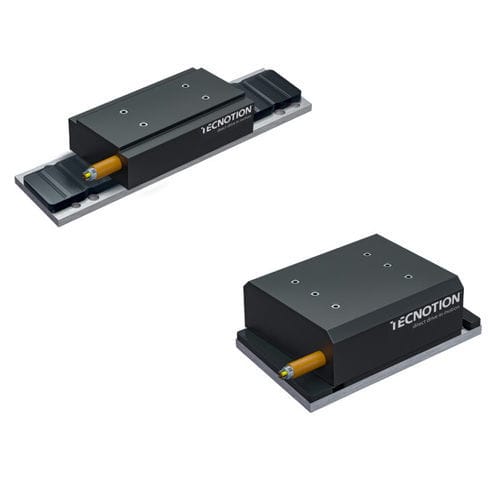

AC-Linearmotor TD82 series

dreiphasigSynchronEisenkern

TD36 - TD55 - TD 82 Serie

TD36
Einzigartig kompakte Bauform
Erleben Sie echte Eisenkern-Performance – auf minimalstem Raum.

Eisenkern-Performance in Bauräumen, die bisher zu kompakt dafür waren. Unser Miniaturmotor bietet die Vorteile der Eisenkerntechnologie selbst in extrem platzbeschränkten Designs – perfekt für Systeme, die trotz minimalem Bauraum maximale Leistung erfordern.
Mit 40 N bei nur 24,8 mm × 36 mm ermöglicht er eine kompakte und leichte Systemintegration.

Kraft TD-36
Maixmale Kraft: 89 – 177 N
Spitzenkraft: 75 – 149 N
Dauerkaft: 40 – 72 N
Spuleneinheiten: TD36-3, TD36-6
Magnetplatten: TD36-96, TD36-144, TD36-288
Bauhöhe 24,9 mm | Breite Spuleneinheit 36 mm

TD55 series Unique low build height
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.

Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.

Kraft TD-55
Ultimate force: 211 – 845 N
Peak force: 161 – 645 N
Continuous force: 106 – 426 N
Coil Units: TD55-3, TD55-6, TD55-9, TD55-12
Magnet Plates: TD55-96, TD55-384

TD82 series
Maximum stroke, Maximum force density
Iron core motor TD82 series
Featuring short coils, the TD82 Series reduces required magnet plate length, optimizing stroke length for greater system efficiency. Engineered for demanding applications that require long stroke lengths and high continuous force, the TD82 series brings impressive force density to an ultra-short motor design.

The lightweight coil unit enhances dynamics, while high thermal conductivity resin and the Pt1000 sensor work together for superior thermal regulation. The hybrid cable with combined power and sensor wires minimizes bulk, making it easier to integrate into compact machine layouts. If your application demands high performance in minimal space, the TD82 offers an optimal balance of power, size, and reliability.

Kraft TD-82
Ultimate force: 453 – 1811 N
Peak force: 403 – 1611 N
Continuous force: 262 – 1048 N
Coil Units: TD82-3, TD82-6, TD82-9, TD82-12
Magnet Plates: TD82-192, TD82-288

Sind Sie daran interessiert, Ihre Anwendungen auf ein neues Leistungsniveau zu heben? Dann füllen Sie einfach das Formular auf unsere Website aus und wir teilen exklusive Einblicke in diese innovative Technologie mit Ihnen. https://www.tecnotion.de/boost-your-power-boost-your-game-german
