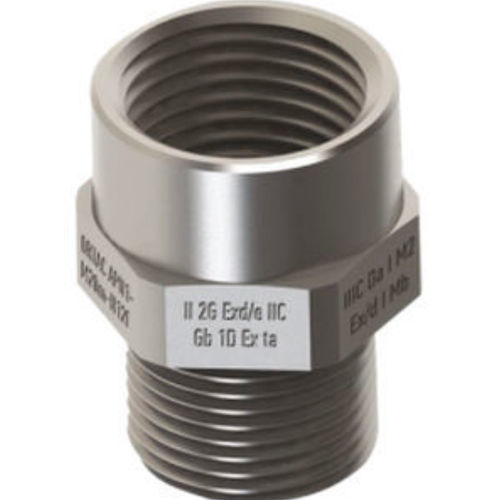

Gewindeadapter AP Type

außeninnenfür Rohre

Produktname
AP Typ-Adapter

Produktdetails
Typ: AP TYPE ADAPTER
Schutzcode: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Zertifikat: IEP 15 ATEX 0333U
Material: Messing, vernickeltes Messing, Edelstahl
Normen: EN 60079-0 2012 / EN 60079-1 2007 / EN 60079-7 2007 / EN 60079-31 2009
O-Ring: NBR / Silikon
Temperaturbereich: -40 °C bis +100 °C
Schutzart: IP66-IP68
Anwendungsbereich: ZONE 1, ZONE 2, ZONE 21, ZONE 22; Gasgruppen IIA, IIB, IIC

Technische Daten (Auswahl von Größen / Codes)
Spalten: Produktgröße | Produktcode | IG (F) | GL min. mm | H mm | SW mm
M12 x 1,5 | APXX/M12m-N14f | NPT 1/4" | 15 | 33,5 | 18
M12 x 1,5 | APXX/M12m-N38f | NPT 3/8" | 15 | 33,5 | 20
M16 x 1,5 | APXX/M16m-N38f | NPT 3/8" | 15 | 33,5 | 20
M16 x 1,5 | APXX/M16m-N12f | NPT 1/2" | 15 | 34 | 25
M20 x 1,5 | APXX/M20m-N12f | NPT 1/2" | 15 | 34 | 25
M20 x 1,5 | APXX/M20m-N34f | NPT 3/4" | 15 | 34 | 30
M25 x 1,5 | APXX/M25m-N34f | NPT 3/4" | 15 | 34 | 30
M25 x 1,5 | APXX/M25m-N100f | NPT 1" | 15 | 34 | 36
M32 x 1,5 | APXX/M32m-N100f | NPT 1" | 15 | 34 | 36
M32 x 1,5 | APXX/M32m-N114f | NPT 1 1/4" | 15 | 37 | 45
M40 x 1,5 | APXX/M40m-N114f | NPT 1 1/4" | 18 | 40 | 45
M40 x 1,5 | APXX/M40m-N112f | NPT 1 1/2" | 18 | 40 | 55
M50 x 1,5 | APXX/M50m-N112f | NPT 1 1/2" | 18 | 40 | 55
M50 x 1,5 | APXX/M50m-N200f | NPT 2" | 18 | 40,5 | 65
M63 x 1,5 | APXX/M63m-N200f | NPT 2" | 18 | 40,5 | 70
M63 x 1,5 | APXX/M63m-N212f | NPT 2 1/2" | 18 | 50,5 | 80
M75 x 1,5 | APXX/M75m-N212f | NPT 2 1/2" | 18 | 50,5 | 80
M75 x 1,5 | APXX/M75m-N300f | NPT 3" | 18 | 50,5 | 95
M90 x 1,5 | APXX/M90m-N300f | NPT 3" | 21 | 54 | 95
M90 x 1,5 | APXX/M90m-N400f | NPT 4" | 21 | 54 | 120
M110 x 1,5 | APXX/M110m-N400f | NPT 4" | 21 | 54 | 120

Umgekehrte/alternative Codes (NPT → Metric)
NPT 1/4" | APXX/N14m-M12f | M12 x 1,5 | GL min. 15 | H 33,5 | SW 18
NPT 1/4" | APXX/N14m-M16f | M16 x 1,5 | GL min. 15 | H 33,5 | SW 22
NPT 3/8" | APXX/N38m-M16f | M16 x 1,5 | GL min. 15 | H 33,5 | SW 22
NPT 3/8" | APXX/N38m-M20f | M20 x 1,5 | GL min. 15 | H 33,5 | SW 25
NPT 1/2" | APXX/N12m-M20f | M20 x 1,5 | GL min. 15 | H 34 | SW 25
NPT 1/2" | APXX/N12m-M25f | M25 x 1,5 | GL min. 15 | H 34 | SW 30
NPT 3/4" | APXX/N34m-M25f | M25 x 1,5 | GL min. 15 | H 34 | SW 30
NPT 3/4" | APXX/N34m-M32f | M32 x 1,5 | GL min. 15 | H 34 | SW 36
NPT 1" | APXX/N100m-M32f | M32 x 1,5 | GL min. 15 | H 34 | SW 36
NPT 1" | APXX/N100m-M40f | M40 x 1,5 | GL min. 15 | H 34 | SW 45
NPT 1 1/4" | APXX/N114m-M40f | M40 x 1,5 | GL min. 18 | H 40 | SW 45
NPT 1 1/4" | APXX/N114m-M50f | M50 x 1,5 | GL min. 18 | H 40 | SW 55
NPT 1 1/2" | APXX/N112m-M50f | M50 x 1,5 | GL min. 18 | H 40 | SW 55
NPT 1 1/2" | APXX/N112m-M63f | M63 x 1,5 | GL min. 18 | H 40 | SW 70
NPT 2" | APXX/N200m-M63f | M63 x 1,5 | GL min. 18 | H 40,5 | SW 70
NPT 2" | APXX/N200m-M75f | M75 x 1,5 | GL min. 18 | H 40,5 | SW 80
NPT 2 1/2" | APXX/N212m-M75f | M75 x 1,5 | GL min. 28 | H 50,5 | SW 80
NPT 2 1/2" | APXX/N212m-M90f | M90 x 1,5 | GL min. 28 | H 50,5 | SW 95
NPT 3" | APXX/N300m-M90f | M90 x 1,5 | GL min. 28 | H 54 | SW 95
NPT 3" | APXX/N300m-M110f | M110 x 1,5 | GL min. 28 | H 54 | SW 115
NPT 4" | APXX/N400m-M110f | M110 x 1,5 | GL min. 28 | H 54 | SW 120

Merkmale / technische Spezifikationen

• Typ: AP TYPE ADAPTER
• Schutzcode: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
• Zertifikat: IEP 15 ATEX 0333U
• Verfügbare Materialien: Messing; Vernickeltes Messing; Edelstahl
• Normen: EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN 60079-31:2009
• O-Ring-Optionen: NBR oder Silikon
• Temperaturbereich: -40 °C bis +100 °C
• Schutzart: IP66 bis IP68
• Anwendungszonen: Zone 1, Zone 2, Zone 21, Zone 22 — Gasgruppen IIA, IIB, IIC
• Verfügbare Größen/Codes: mehrere metrische und NPT-Kombinationen (siehe Technische Daten)
