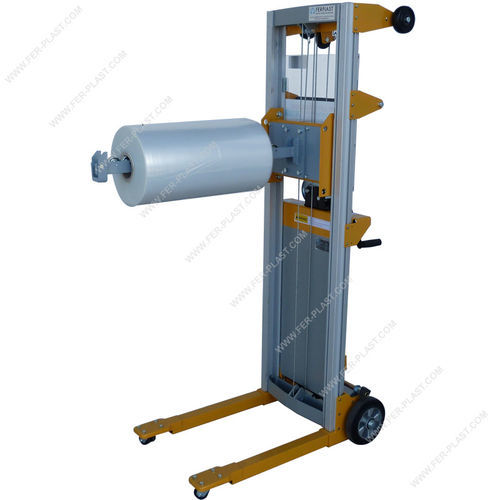

Automatischer Aufzug W181 B

WINCH LIFT FOR REELS WITH INTERCHANGEABLE ACCESSORIESPractical and functional, allows you to lift reels up to 150 kg to a maximum height of 2600 mm when equipped with accessories (fixed pin, V-shaped table, reel shaft, etc.).Equipped with forks and platform, it allows lifting of 180 kg up to a height of 2450 mm.With the exclusive hand crank winch, you can lift the load with minimal effort, and the built-in automatic clutch allows you to block the lifting operation at any time. Lowering the load is only possible when the operator intentionally acts on the winch and lowers it slowly.Equipped with stranded wire rope with textile core, horizontal sliding handles, pedal parking brake system, aluminum structure, and oven-dried epoxy powder coating.The lift can be equipped with various accessories for lifting and transporting coils.MODELMOD. W181 B for reelsMaximum capacityKg. 180Dimensionsmm. 630 (D) x 880 (C) x 1720 h.(A)Pin height (min./max.)mm. 90 - 2450 (B/B1)Mast heightmm. 1720 - 3000Clearancemm. 1120Rear wheelsRubberFront wheelsNylonWidth of front supportsmm. 620Total media widthmm. 510Inner distance of supportsmm. 340Height of supports from the groundmm. 85Weightkg. 70OPTIONALACC-PB fixed reel holder L600Reel holder shaft with diameter 50 mm and length 600 mm, allows gripping and horizontal transport of reels with a maximum width of 600 mm and a maximum weight of 100 kg.ACC-PB60-2 fixed reel holderReel holder shaft with diameter 76 mm and length 600 mm, allows gripping and horizontal transport of reels with a maximum width of 600 mm and a maximum weight of 150 kg.ACC-PB10 reel holder pin with extended supportsFixed reel holder shaft with a length of 1000 mm and a capacity of 50 kg, allows horizontal gripping and transport of reels + enlarged extended supports to prevent the elevator from tipping forward.ACC-WP-A02 roll reel carrier shaftIdeal for horizontal transport of reels with a maximum width of 500 mm, minimum inner diameter 76 mm, maximum outer diameter 500 mm – Maximum weight 150 kg.ACC-WP-A02-2 roll reel carrier shaft with safety stop, length 600 mm and diameter 70 mm:Ideal for horizontal transport of reels with a maximum width of 500 mm, minimum inner diameter 76 mm, maximum outer diameter 500 mm – Maximum weight 100 kg.ACC-WP-A03 for lifting and rotating coils:Allows gripping via a shaft and expansion with a manual handwheel and subsequent horizontal/vertical rotation via a release lever.Note: Using this accessory reduces the lifting height by 200 mm.ACC-FP forks with platformOptional forks with nylon loading surface, capacity 180 kg, maximum lifting height 2450 mm.Reel dimensions:- Inner diameter: 76 mm- Outer diameter max: 500 mm- Maximum width: 600 mm- Maximum weight: 60 kgTechnical Specifications / Features:Model: MOD. W181 B for reelsMaximum capacity: 180 kgDimensions: 630 x 880 x 1720 mmPin height (min./max.): 90 - 2450 mmMast height: 1720 - 3000 mmClearance: 1120 mmRear wheels: RubberFront wheels: NylonWidth of front supports: 620 mmTotal media width: 510 mmInner distance of supports: 340 mmHeight of supports from the ground: 85 mmWeight: 70 kg
