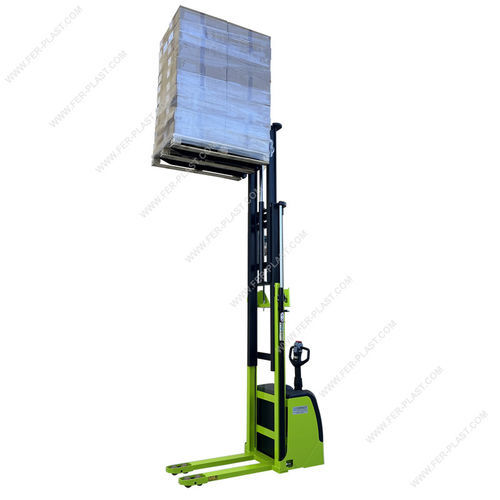

Elektrischer Gabelstapler FPLX 14 series

Begleiterfür Materialumschlag

PROFESSIONAL, FULLY ELECTRIC LIFTING DEVICES OF THE FPLX PRO TRIPLEX SERIESThe indicated price includes 1 traction battery 24V-225Ah and high-frequency charger for traction battery 24V-225Ah.The FPLX TRIPLEX/FREELIFT series is the next series of robust and professional stackers suitable for high utilization during the workday. In fact, they have an autonomy of 6 hours.This type of truck is also available in the FREE LIFT (FL) version, which is equipped with full free lift, allowing the pallet to be lifted and moved without increasing the minimum size. This allows the machine to be used even in work environments with low heights.All versions are characterized by very high quality and are equipped with electric drive and lift.Main features:High maneuverability: The new model is flexible and easy to use, with a reduced side dimension of 800 mm.The position of the wheels is always within the width of the vehicle, allowing the transport of goods in tight spaces and corridors.Quick and easy battery maintenance thanks to the new opening with ABS cover.Precise control system and integrated safety switch and battery status indicator.Ergonomic tiller.Available models:FPLX PRO 14/45 TRIPLEX Capacity 1400 kg Lifting height 4410 mmFPLX PRO 14/45 TRIPLEX-FREELIFT Capacity 1400 kg Lifting height 4410 mmFPLX PRO 14/50 TRIPLEX Capacity 1400 kg Lifting height 5025 mmFPLX PRO 14/50 TRIPLEX-FREELIFT Capacity 1400 kg Lifting height 5025 mmFPLX PRO 14/42 TRIPLEX Capacity 1400 kg Lifting height 4110 mmFPLX PRO 14/42 TRIPLEX-FREELIFT Capacity 1400 kg Lifting height 4110 mmATTENTION: All forklifts are individually professionally tested before packaging and shipping and have CE certification.Specific technical data:SERIES CAPACITY 1400 KgMODELFPLX 14/45 TRFPLX 14/45 TR FLFPLX 14/50 TRFPLX 14/50 TR FLLoad1400 kg1400 kg1400 kg1400 kgLifting height4410 mm4410 mm5025 mm5025 mmFree lift250 mm1470 mm250 mm1675 mmDriveelectricelectricelectricelectricDrive speed6 km/h6 km/h6 km/h6 km/hLiftingelectricelectricelectricelectricLifting speed0.14 m/s0.14 m/s0.14 m/s0.14 m/sLowering speed (with load)0.28 m/s0.28 m/s0.28 m/s0.28 m/sFork length1150 mm1150 mm1150 mm1150 mmOpen/closed mast height (mm)2080-50202089-50292285-56352294-5644Fork width560 mm560 mm560 mm560 mmOverall dimensions1966x800 mm1966x800 mm1966x800 mm1966x800 mmTraction engine1.2 kW1.2 kW1.2 kW1.2 kWLifting motor3.2 kW3.2 kW3.2 kW3.2 kWStandard batteryTraction battery 24V 225AhTraction battery 24V 225AhTraction battery 24V 225AhTraction battery 24V 225AhWeight1190 Kg1223 Kg1229 Kg1262 KgMaximum height difference under load 5%Maximum height difference without load 10%Electromagnetic parking brakeService brake with countercurrentOperating conditions 0° to +40 °CThe load must be evenly distributed on the forks.As with all lifting devices, card safety must be observed.Depending on the size and design of the stacker, the flow rate decreases with increasing height or distance from the center of gravity.Residual capacityThe table shows residual flow ranges based on height.The customer must check the maximum height that each model can reach.MODEL3300 mm3600 mm4000 mm4500 mm5000 mmFPLX 14/45 TR1400 Kg1200 Kg1000 Kg800 KgFPLX 14/45 TR FL1400 Kg1200 Kg1000 Kg800 KgFPLX 14/50 TR1400 Kg1200 Kg1000 Kg800 KgFPLX 14/50 TR FL1400 Kg1200 Kg1000 Kg800 KgBattery:The standard traction battery included with the truck has a capacity of 24 V and 225 AhIt is possible to use the optional traction battery 24 V – 300 AhThe optional fee consists of an increase due to the change of battery and charger.It can only be selected when purchasing the cart.OPTIONAL platform for operator:You can purchase the platform for the operator and select it as an option.COLORS AND FUNCTIONSThe presented lifters are of European production.They are models of excellent quality, suitable for professional use.The color of the lifters is not binding. It may change depending on the available color at the time of order without prior notice.Professional, fully electric lifting devicesCapacity: 1400 kgLifting height: 4110 to 5025 mmHigh maneuverability and compact designElectric drive and liftTraction battery 24V-225Ah includedAutonomy: 6 hoursCE certified
