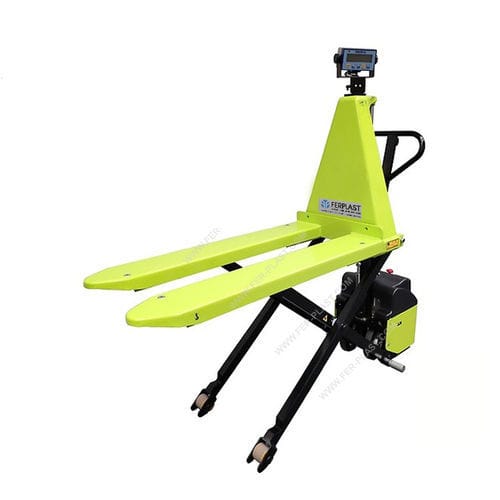

Elektrischer Hubwagen FHPX540/115EP

12 Vmit Wiegesystemfür Materialumschlag

PALLET TRUCK FHPX 1000 P – SCALE WITH ELECTRIC LIFTINGScissor pallet truck, scale, with manual push and electric lift up to 715 mm. Fork dimensions 1185x565 mm.Equipped with a precise and easy-to-use weighing device that allows simultaneous lifting and weighing of loads, making it suitable for all weighing and handling operations. The scale is equipped with a simple and intuitive LCD display mounted on the front of the pallet truck, which can be easily rotated and adjusted as needed. The display covers a 270° angle on the tiller axis, allowing the operator to always keep the weighing data under control in various loading and unloading situations.It can be used like a normal pallet truck, but when the load is more than 400 mm above the ground, the stabilizers come into play, preventing movement.It is typically used in manual palletizing and depalletizing operations to reduce physical effort and increase productivity.The standard color of the carrying straps is green.MODELFHPX540/115EPLoad (Q)1000 KgLifting height (h3)715 mmAdvancementmanualLiftingelectricLifting speed0.13 m/sLowering speed0.13 m/sFork length (l)1185 mmFork width (e)180 mmFork thickness (s)70 mmMinimum fork height (h13)90 mmTurning radius (Wa)1515 mmNumber of front wheels2 rubberWidth of front wheels50 mmDiameter of front wheels200 mmNumber of rear wheels2 polyWidth of rear wheels60 mmDiameter of rear wheels70 mmTrolley weight215 KgBattery typeCar typeStandard battery12V 60AhLift motor power1.6 KwOperating conditions-12 + 40 °CSupplied with standard battery and charger.SCALEType DFWLDigits displayn° 6Digit height25 mmKgYESLbsYESTareYESAutomatic shutdownYESTotalizerYESPiece countYESAutonomy40 hFull accuracy0.05%Load cellsn° 4Division0.5 KgBattery6V 4AhOPTIONAL:- GEL BATTERY VERSIONEquipped with battery status indicator and 12V 50Ah C20 battery, particularly suitable for deep-cycle applications. The gel battery is safer (no acid leakage) and requires no refilling.- LITHIUM-ION BATTERY VERSIONEquipped with a long-lasting 24V 30Ah lithium-ion battery. Fast charging and with the possibility of intermediate charges. Increased safety as the battery is acid-free and requires no maintenance.- SELF-LEVELING SYSTEMAutomatic system that, via a sensor, adjusts the height of the forks and keeps the desired working height constant. Equipped with safety microswitch for up and down movement. The sensor is adjustable by the operator. An acoustic and optical signal warns the operator during fork movements.- APPROVALThe CE-M approval for weighing according to OIML R-76/EN is valid only for commercial purposes in relation to third parties and not for tax purposes.- THERMAL PRINTERThermal printer for weighing, useful to ensure immediate and traceable control of the weighings performed.COLORS AND FUNCTIONSThe presented trolleys are of European production. These are models of excellent quality, suitable for professional use.The standard color of the lifts is green, but it is not binding as it may be changed without notice depending on availability.Model: FHPX540/115EPLoad capacity: 1000 KgLifting height: 715 mmManual advancement, electric liftingLifting/lowering speed: 0.13 m/sFork dimensions: 1185x565 mmFork width: 180 mmFork thickness: 70 mmMinimum fork height: 90 mmTurning radius: 1515 mmFront wheels: 2 rubber, 50 mm wide, 200 mm diameterRear wheels: 2 poly, 60 mm wide, 70 mm diameterTrolley weight: 215 KgBattery: 12V 60Ah (standard), car typeLift motor: 1.6 KwOperating temperature: -12 to +40 °CScale: Type DFWL, 6 digits, 25 mm digit height, 0.05% accuracy, 0.5 Kg division, 4 load cells, 40 h autonomy, 6V 4Ah batteryFunctions: Kg/Lbs, tare, automatic shutdown, totalizer, piece countSupplied with standard battery and chargerOptional: GEL battery, lithium-ion battery, self-leveling system, CE-M approval, thermal printerStandard color: green (may vary)
