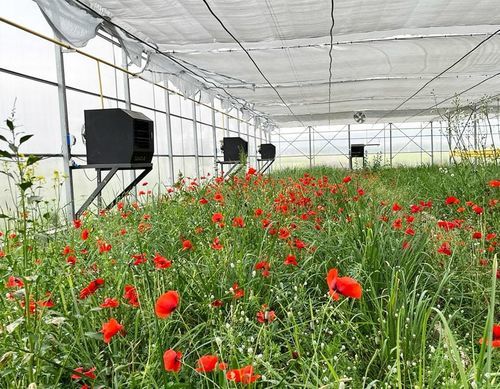

Wandmontierter Heißluftgenerator Lodos 70

Gasfür den Landwirtschaftsbedarf

Daygas combines efficient, economical, high-quality, and functional products that prioritize innovation and R&D, saving energy in the heating sector for end users.Cooling mode.Fast start.Low-noise operation.Low emission value.High safety level.Secure gas valve system.Low energy consumption.5-stage operation with thermostats or remote control.Error message and stage display on the screen.Specially designed boiler for increased efficiency.Capacity69.7 kWGas consumptionNG 6.65 m³/h / LPG 4.92 kg/hDimensions790h / 1057L / 842wWeightNet 103.25 kg / Gross 124.04 kgOperating pressureNG 21-55 mbar / LPG 32-55 mbarHeating area (m²)min 350 m² / avg 420 m² / max 505 m²Heating area (m³)min 820 m³ / avg 1290 m³ / max 1532 m³Sound level in empty room62 d-BASound level at workplace50 d-BAAirflow (m³)6900 m³Electrical connection (EU)190-260 V / 50-60 HzGas connectionG ¾’’Lodos hot air generators heat areas where direct convection is required, using a technological burner structure that releases minimal exhaust gases. The heat generated in the high-efficiency blades is transferred directly to the medium by an axial fan, making them devices with the most homogeneous heat output.Possibility to operate hermetically and semi-hermetically.Electrical components made of high-temperature resistant, non-flammable silicone cables.All metal components made of high-temperature resistant, durable aluminum-silicon alloy.Daygas Lodos hot air generators transfer the heat energy from NG or LPG either directly to the environment where the fan is mounted or by blowing hot air through air ducts. Thanks to a specially developed boiler structure, they offer high efficiency and low energy consumption. The special design ensures the lowest operating noise level with the boiler and housing structure, operating more quietly than competitors. Due to the rising hot air, it is recommended to use hot air generators in confined spaces with ceiling heights not exceeding 5 m for more efficient and homogeneous heating.Remote controlIntegration via control panelPako switched manual controlThermostat-controlled automatic controlIntegration into automation system (SCADA control)The variety of control scenarios offered as 5 different alternatives allows the products to be controlled correctly and as desired. The most suitable control scenario is selected by evaluating the on-site use of the devices in the product range and the site conditions. Therefore, control with the right solution scenario facilitates both fuel savings and long-lasting, trouble-free operation.128x64 graphic LCD displayAutomatic and manual controlCommunication port with computerPossibility to connect an external temperature sensorPossibility to control 8 independent zones and a total of 32 devices7 days, 24 hours programmable functionOverheat protection modeFrost protection functionEncrypted protection functionIt facilitates your work thanks to many commands, from controlling the switching on and off of the devices at the desired working days and time intervals to maintaining a warm environment in the temperature range set for frost protection when the company is closed.Analog room thermostat: The device automatically switches off when the set temperature is reached. When the room temperature drops below the desired value, the device automatically switches on at maximum level and starts working again, saving fuel.Digital room thermostat: When the devices reach the temperature programmed with the Daygas temperature sensor, the modulation value of the device is reduced according to weather conditions, saving fuel. Once the desired temperature is reached, the device switches off automatically, and when the temperature drops below the set value, it switches on and operates at the most suitable temperature level for the environment.Pako switched manual control: Stepwise manual control can be provided via the Pako switch. For more local solutions where no control panel is available or needed, the devices can be operated at the desired level via the Pako switch. The heating devices can be controlled with independent step settings. When the device is in standby mode (0) on the Pako, it is not switched on, and after shutdown procedures, it goes into rest mode, ensuring a long service life.Remote control: All functions of the device such as on/off, temperature increase and decrease, and reset can be easily controlled with the Daygas remote control. All Daygas products can be controlled remotely with a single remote.Integration into automation system (SCADA): Devices can be integrated directly into building automation systems (BMS) via the Modbus communication protocol over the RS485 port (internal). If no BMS system is available, device control can be fully automatic from a single center via an HMI touch panel or PC.In the BMS system: Operating sequence of devices on specified days and hours; operation of heating devices with regional or individual step and modulation control; displaying device error codes in the system to identify faulty devices and keep errors in memory; functional controls such as immediate, daily, weekly, or monthly monitoring of fuel consumption are advantages of the integrated automation system.Technical Specifications / Features:Capacity: 69.7 kWGas consumption: NG 6.65 m³/h / LPG 4.92 kg/hDimensions: 790h / 1057L / 842wWeight: Net 103.25 kg / Gross 124.04 kgOperating pressure: NG 21-55 mbar / LPG 32-55 mbarHeating area: min 350 m² / avg 420 m² / max 505 m²Heating volume: min 820 m³ / avg 1290 m³ / max 1532 m³Sound level in empty room: 62 d-BASound level at workplace: 50 d-BAAirflow: 6900 m³Electrical connection (EU): 190-260 V / 50-60 HzGas connection: G ¾’’
