* Grundplatten/Verteilerrohre für Standardventile * Grundplatten/Verteilerrohre für Standardventile.
GRO LR NAS NAU NAV NAVW NAW NDV NEV NSC NZV VABB VABE VABF VABS VABV VAOP.
15 Millimeter-KOMPAKTE Ventile - verlegt und für Grundplattekörper
- Niedriges Standardenergie cosumption (0,32W): Schwachstrom consuption electropilot B10 (Standardversion mit LED)
- Schnelle Antwortzeiten
- Hohe Strömungsgeschwindigkeit: die Entwicklung der traditionellen UNIVER Spulentechnologie ermöglicht hohe Florida ow Ratenwerte
- Kompaktbauweise: der Ventilkörper (10-15mm) ...
10mm KOMPAKTE Ventile - verlegter Körper und für Grundplattemontage
- Niedrige Standard-Leistungsaufnahme (0,32W): Schwachstromverbrauch electropilot B10 (Standardversion mit LED)
- Schnelle Antwortzeiten
- Hohe Florida ow Rate: die Entwicklung der traditionellen UNIVER Spulentechnologie ermöglicht hohe Florida ow Ratenwerte
- Kompaktbauweise: der Ventilkörper (10mm) erlaubt verringerte ...

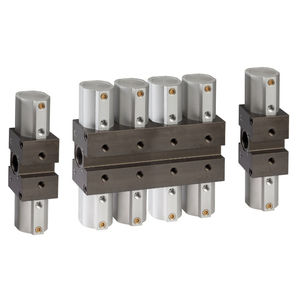

The type LBK is terminal for 3/2 solenoid valves with a max. width of 32 mm. It allowes standard 3/2 valves with G1/4 threads to be sub-base mounted featuring a built-in on-off valve for the supply air. The solenoid valve is fixed to the block with a banjo. The block manifold is availabe for the number of valves given by the last digit in Type No.
The type LBL is aimed for Lucifer 3/2 solenoid valves type 131 M74-75. A built-in on-off valve will allow to shut-off the supply air to each station. The block can be made to fit other types and brands with a similar construction.The outlets in the block are G1/8. The block manifold is available for the number of valves given by the last digit in theType No.
The type IL/IM is terminal for sub-base mounted 5/2 solenoid valves according to ISO 5599/1 size 1 and 2. The block is available in two types.
Type A have exhausts for the ports 12 och 14. Type B have no exhausts for the ports 12 and 14.
The type to select will be dependent of the function of solenoid valve.
