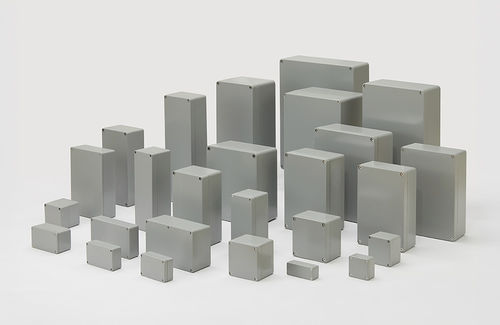

Wandmontiertes Gehäuse AL series

rechteckigquadratischAluminium

Widerstand: chemische Mittel, Laugen, Öle, Salze usw. Nennspannung: bis zu 690V Maximalstrom: bis zu 800A Betriebstemperatur: -40℃ bis +120℃ Glühdrahtfähigkeit/Entflammbarkeit: 960 Grad/ UL94V0 Material: Aluminium Montageplatte: verzinkter Stahl 1,2 mm oder isolierte Platte (separate Lieferung) Schutzart IP: IP66 Schutzart IK: IK 08 Farbe: RAL7038 grau Produktcode | H | B | T | Zink-Montageplatte | Isolierte Platte AL-0605 | 64 | 58 | 35 | L0605 | A0605 AL-0807 | 80 | 75 | 60 | L0807 | A0807 AL-0903 | 90 | 36 | 31 | L0903 | A0903 AL-0906 | 98 | 64 | 35 | L0906 | A0906 AL-1010 | 100 | 100 | 60 | L1010 | A1010 AL-1010-1 | 100 | 100 | 80 | L1010-1 | A1010-1 AL-1106 | 111 | 64 | 37 | L1106 | A1106 AL-1106-1 | 115 | 65 | 55 | L1106-1 | A1106-1 AL-1109 | 115 | 90 | 58 | L1109 | A1109 AL-1208 | 120 | 80 | 56 | L1208 | A1208 AL-1208-1 | 120 | 80 | 58 | L1208-1 | A1208-1 AL-1212 | 120 | 120 | 82 | L1212 | A1212 AL-1308 | 135 | 80 | 56 | L1308 | A1308 AL-1414 | 140 | 140 | 75 | L1414 | A1414 AL-1414-1 | 140 | 140 | 100 | L1414-1 | A1414-1 AL-1410 | 145 | 100 | 45 | L1410 | A1410 AL-1506 | 150 | 64 | 37 | L1506 | A1506 AL-1510 | 150 | 100 | 80 | L1510 | A1510 AL-1610 | 160 | 100 | 60 | L1610 | A1610 AL-1610-1 | 160 | 100 | 65 | L1610-1 | A1610-1 AL-1610-2 | 160 | 100 | 80 | L1610-2 | A1610-2 AL-1616 | 160 | 160 | 70 | L1616 | A1616 AL-1616-1 | 160 | 160 | 90 | L1616-1 | A1616-1 AL-1609 | 165 | 95 | 39 | L1609 | A1609 AL-1708 | 175 | 80 | 56 | L1708 | A1708 AL-1708-1 | 175 | 80 | 65 | L1708-1 | A1708-1 AL-1708-2 | 175 | 80 | 80 | L1708-2 | A1708-2 AL-1812 | 188 | 120 | 78 | L1812 | A1812 AL-2010 | 200 | 100 | 60 | L2010 | A2010 AL-2010-1 | 200 | 100 | 80 | L2010-1 | A2010-1 AL-2012 | 200 | 120 | 80 | L2012 | A2012 AL-2013 | 200 | 130 | 60 | L2013 | A2013 AL-2013-1 | 200 | 130 | 78 | L2013-1 | A2013-1 AL-2013-2 | 200 | 130 | 85 | L2013-2 | A2013-2 AL-2212 | 220 | 120 | 80 | L2212 | A2212 AL-2212-1 | 220 | 120 | 90 | L2212-1 | A2212-1 AL-2214 | 222 | 145 | 55 | L2214 | A2214 AL-2214-1 | 222 | 145 | 80 | L2214-1 | A2214-1 AL-2315 | 230 | 150 | 78 | L2315 | A2315 AL-2315-1 | 230 | 150 | 85 | L2315-1 | A2315-1 AL-2320 | 230 | 200 | 100 | L2320 | A2320 AL-2416 | 240 | 160 | 75 | L2416 | A2416 AL-2416-1 | 240 | 160 | 100 | L2416-1 | A2416-1 AL-2508 | 250 | 80 | 64 | L2508 | A2508 AL-2508-1 | 250 | 80 | 80 | L2508-1 | A2508-1 AL-2512 | 250 | 120 | 82 | L2512 | A2512 AL-2616 | 260 | 160 | 90 | L2616 | A2616 AL-2618 | 265 | 185 | 75 | L2618 | A2618 AL-2618-1 | 265 | 185 | 95 | L2618-1 | A2618-1 AL-2618-2 | 265 | 185 | 130 | L2618-2 | A2618-2 AL-2823 | 280 | 230 | 110 | L2823 | A2823 AL-3021 | 300 | 210 | 100 | L3021 | A3021 AL-3021-1 | 300 | 210 | 130 | L3021-1 | A3021-1 AL-3123 | 310 | 230 | 120 | L3123 | A3123 AL-3220 | 320 | 200 | 90 | L3220 | A3220 AL-3212 | 320 | 120 | 90 | L3212 | A3212 AL-3323 | 330 | 230 | 110 | L3323 | A3323 AL-3423 | 340 | 235 | 95 | L3423 | A3423 AL-3423-1 | 340 | 235 | 120 | L3423-1 | A3423-1 AL-3423-2 | 340 | 235 | 135 | L3423-2 | A3423-2 AL-3423-3 | 340 | 235 | 160 | L3423-3 | A3423-3 AL-3612 | 360 | 120 | 80 | L3612 | A3612 AL-3616 | 360 | 160 | 95 | L3616 | A3616 AL-3616-1 | 360 | 160 | 135 | L3616-1 | A3616-1 AL-4023 | 400 | 230 | 110 | L4023 | A4023 AL-4026 | 400 | 260 | 110 | L4026 | A4026 AL-4031 | 400 | 310 | 110 | L4031 | A4031
