Dampfableiter ADCA FLT Float And Thermostatic Steam Trap

automatischthermostatisch

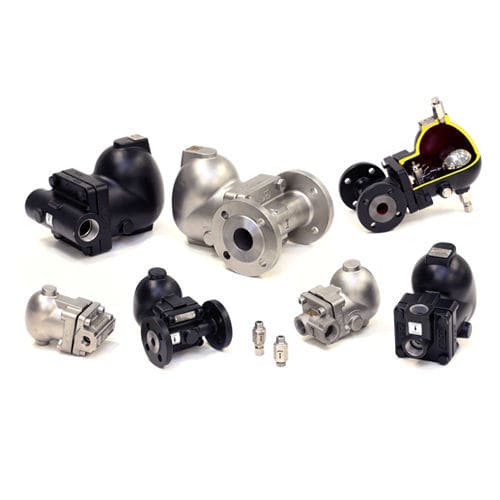

The ADCA FLT31 is a float and thermostatic steam trap with an integrated air vent, designed for the modulating discharge of condensate to ensure maximum heat transfer in the system. Typical applications include heat exchangers, dryers, jacketed vessels, and other applications where continuous discharge is essential. - Material: Carbon steel - Nominal sizes: 1/2” to 1” – DN 15 to DN 25 - Connections: Female thread ISO 7 Rp or NPT Flange EN 1092-1 PN 40 Flange ASME B16.5 Class 150 or 300 Socket weld (SW) ASME B16.11 - Max. operating pressure: 32 bar - Max. operating temperature: 250 ºC - Capacity: Up to 710 kg/h Technical Specifications: - Material: Carbon steel - Nominal sizes: 1/2” to 1” – DN 15 to DN 25 - Connections: Female thread ISO 7 Rp or NPT, Flange EN 1092-1 PN 40, Flange ASME B16.5 Class 150 or 300, Socket weld (SW) ASME B16.11 - Max. operating pressure: 32 bar - Max. operating temperature: 250 ºC - Capacity: Up to 710 kg/h
