Kugelventil T32-B2-B

elektrisch betriebenSteuerungfür Wasser

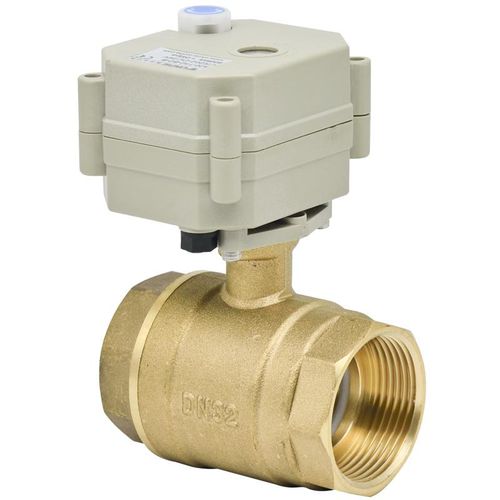

T32-B2-B DN32 brass electric actuator water motorized ball valve for water supply Min.Order Quantity: 1 Piece/Pieces Supply Ability: 5000 Piece/Pieces per Month Port: ningbo Payment Terms: L/C,T/T Service On Line Tonhe is a china manufacturer, we focus on mini motorized valve(3/8" - 2"), which are CE, RoHS, IP67 approved, and SS valve NSF61 approved. Our company also SGS ISO9001 approved. Technical Parameters: Valve size NPT/BSP1 1/4" Maximum working pressure 1.3 MPa Circulation medium Fluid, air Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35V AC110-230V (Optional ) Wiring control methods CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR3-05 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-04（Optional） Working current ≤500MA Open/close time ≤5S/≤7S（Optional） Life time 50000 times Valve Body material Brass, Nickel plated Brass, 304 Stainless steel （Optional） Actuator material Engineering Plastics Sealing material EPDM & PTFE Actuator rotation 90° Max. torque force 2 Nm/4Nm/10N.m（Optional） Cable Length 0.5m,1.5m（Optional） Environment temperature -15℃～50℃ Liquid temperature 2℃～90℃ Manual override Yes No（Optional） Indicator Yes No （Optional） Protection class IP67
