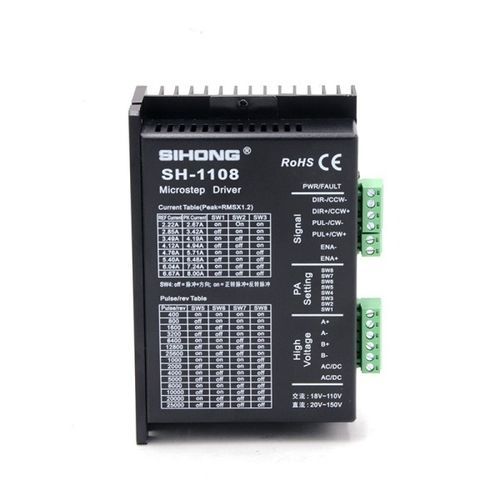

Motorantrieb SH-1108

Product Details:Input Voltage: 18-1100VACMaximum Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200 (difference/single-end)Pulse/Direction or Double-Pulse Impulse Response Frequency: 200kHzOn-power parameter automatic setting functionPrecision current control significantly reduces motor heating.Electrical IndexA. Control Signal InterfaceB. High Voltage Interface2. Dial the Code SetThe SH-1108 driver adopts the eight-bit dial code switch to set the subdivision precision, dynamic current, static half current, as well as achieve the self-setting of motor parameters and internal adjustment parameters.Detailed description is as follows:1) Working (dynamic) current settingDial 4, OFF = pulse plus direction mode, ON = double pulse input mode2. Control Signal Mode SettingSH-1108 driver signal mode is set by three jumpers on the PCB board.3. Controller Wiring Diagram4. Installation DimensionCategories: 2-phase stepper motor, stepper motor driverTags: BLDC motor, closed loop motor, DC servo motor, driver, stepper motor, stepper motor driverTechnical Specifications:Input Voltage: 18-1100VACMax Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200Impulse Response Frequency: 200kHzAutomatic parameter setting functionPrecision current control
