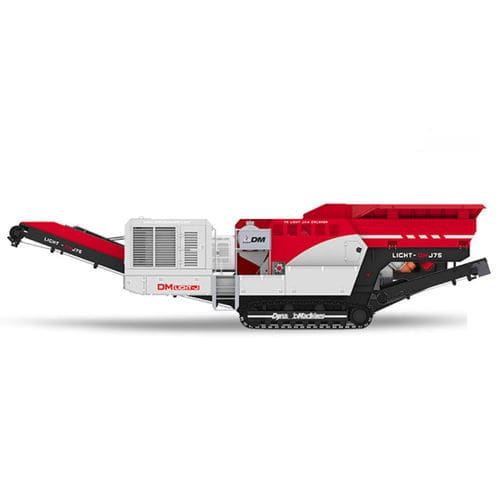

Backenbrecher DMJ75H

mobilauf Raupen

Overview
The DongMeng Tracked mobile light jaw crusher is equipped with the latest European style jaw crusher. This is an optimized design and manufacturing in terms of structure, material selection, technology, and assembly. The new type jaw crusher has the features of light weight, simple operation and large crushing ratio.

Main data

• Feed Particle Size: ≤450mm
• Processing Capacity: 55-150t/h
• Machinery Weight: 25t

Product Parameters
Model: DMJ75H
Main Crusher Model / Power / Weight: DC75 / 75kw / 9.5t
Max. Feed Size: 450mm
Capacity: 55-150t/h
Feed and Discharge Height: 3050mm / 2800mm
Hopper Capacity: 3m³
Engine Power: 159kw
Main Belt Conveyor: B700 x 9m
Side Materials Belt Conveyor: B500 x 2.3m
Machine Size (L×W×H, m): Working state: 12.3x2.2x3.03m; Transport state: 10.8x2.2x3.03m
Weight (ton): 25t

Field of Application

• Quarry Aggregate Processing
• Construction Waste Recycling & Reuse
• Urban Road Reconstruction
• Coal Mine Crushing and Screening
• Metal Ore Crushing
• Highway and Railway Construction
• Mine Waste Rock and Tailings Treatment

Product Advantage

• Materials Feeding — Large-size standard hopper is convenient for fast feeding; the vibrating grizzly feeder ensures stable, continuous and even feeding with pre-screening function to improve the purity of finished materials.
• Jaw Crusher — Hydraulic Closed Side Setting for convenient and quick adjustment; optimized cavity design for high capacity and large crushing ratio; powerful crusher drive to ensure maximum crushing ability and high reliability.
• Side Conveyor — Vibrating grizzly feeder pre-screens fine materials, increasing crusher efficiency and reducing dust ratio.

Caractéristiques / Spécifications techniques

• Model: DMJ75H
• Main Crusher Model / Power / Weight: DC75 / 75kw / 9.5t
• Max. Feed Size: 450mm
• Capacity: 55-150t/h
• Feed Particle Size: ≤450mm
• Feed and Discharge Height: 3050mm / 2800mm
• Hopper Capacity: 3m³
• Engine Power: 159kw
• Main Belt Conveyor: B700 x 9m
• Side Materials Belt Conveyor: B500 x 2.3m
• Machine Size (L×W×H, m): Working state: 12.3x2.2x3.03m; Transport state: 10.8x2.2x3.03m
• Weight (ton): 25t
