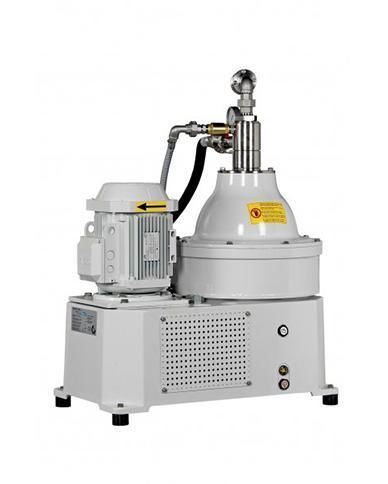

Laborzentrifuge

für pharmazeutische Anwendungenfür die Lebensmittelindustriefür Mineralölprodukte

Overview
The MACFUGE disk centrifuges with automatic discharge are designed and built to separate a mixture of liquids having different specific weight and a solid. The bowl “self-cleaning” or “with automatic discharge” means the capacity of the centrifuge to eject the solids, which have been separated from the liquids, using a hydraulic system in the bowl bottom, while running at full speed. These machines are simple and offer different configurations according to process requirements. The MACFUGE centrifuges are reliable, user-friendly, easy to dismount for maintenance and cleaning and allow their use in any process industry that requires fluids separation. They can be manufactured in any material and to work in areas classified CE-ATEX. Within the range of MACFUGE with automatic discharge of small size, we have MACFUGE MODULAR SYSTEMS. Each system is a complete plug-and-play module skid mounted; they are small, transportable units for fluids separation, clarification and purification on a small scale.

Operation / Functioning
The product to be separated enters inside the bowl via a fixed feed pipe. The discharging functions are executed at different time intervals pre-determined by the operator through a PLC in the control panel. The opening time (volume discharged) and the discharge frequency are regulated by setting the times of opening and closing of the solenoid valves. Depending on the time setting, the machine is ready to achieve both partial and total discharge of the bowl content. The efficiency of the centrifuge depends on the characteristics of the mixture to be separated; viscosities, temperature, amount of solid and the difference between the densities of the various phases are parameters that can significantly affect the separation.

Application

• Power generation
• Oil & Gas
• Marine
• Biodiesel
• Vegetable oils refinery
• Chemical products
• Food products
• Pharmaceutical
• Soaps
• Dairy
• Brew
• Juice

Customization
MACFUGE provides custom engineering experience for products with different characteristics and requirements; the Technical Department studies specific projects for each client.

Available models and key data
Macfuge 260
Bowl: Rotation speed 9.600 rpm
Motor: Power 3 Kw
Dimensions: mm 370 X 680 X h. 780

Macfuge 325
Bowl: Rotation speed 8.500 rpm
Motor: Power 5,5 Kw
Dimensions: mm 600 X 900 X h. 1200

Macfuge 450
Bowl: Rotation speed 7.600 rpm
Motor: Power 15 Kw
Dimensions: mm 760 X 1250 X h. 1600

Macfuge 590
Bowl: Rotation speed 5.800 rpm
Motor: Power 22 Kw
Dimensions: mm 1000 X 1500 X h. 2000

Macfuge 680
Bowl: Rotation speed 4.700 rpm
Motor: Power 37÷45 kW
Dimensions: mm 1050 X 2000 X h. 2100

Macfgue 710
Bowl: Rotation speed 4.800 rpm
Motor: Power 30 kW
Dimensions: mm 1300 x 1900 x h. 2300

Macfuge 711
Bowl: Rotation speed 5.300 rpm
Motor: Power 30 KW
Dimensions: mm 1300 X 1900 X h. 2300

Caractéristiques / spécifications techniques

• Automatic self-cleaning bowl with hydraulic discharge at bowl bottom allowing solids ejection during full-speed operation
• Discharge cycles controlled by PLC: programmable opening time (discharged volume) and frequency via solenoid valves
• Suitable for partial or total bowl discharge depending on timing settings
• Performance depends on mixture properties: viscosity, temperature, solids concentration, phase density differences
• Available in multiple materials; can be manufactured for CE-ATEX classified areas
• MACFUGE Modular Systems: plug-and-play skid-mounted units for small-scale separation, clarification and purification
