Zentrifugalabscheider

Ölfür Produktionsanlagenautomatisch

Overview

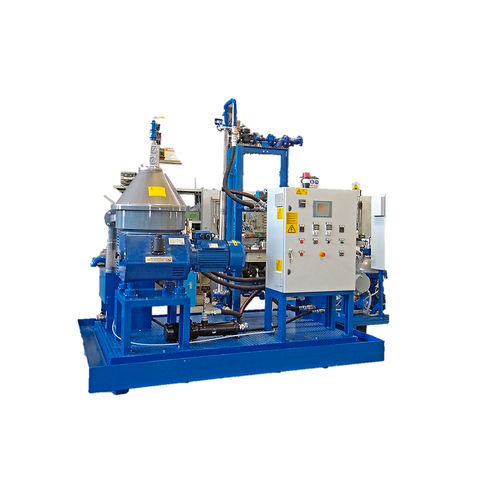

MACFUGE systems are ideal for heavy-duty applications: they continuously remove impurities, such as solid particles and water, from combustible and lubricating oils. The modular composition allows selection of accessories to make the process more efficient and automated.

Modular accessories

• electric heaters
• sludge handling unit
• feed pumps

Supported environments
Offshore - Sea - Explosive - Arctic - Tropical

Certification
All MACFUGE equipment is available in an explosion proof configuration for hazardous areas (ATEX certification).

Advantages of using a MACFUGE centrifugal separator

• Continuous separation of the incoming product
• Extending the useful life of the product
• Significant reduction of equipment wear
• Low volume of waste to be disposed of
• Does not require flocculants
• Works effectively even on floating platforms
• The applied centrifugal force is higher than that of a hydro cyclone
• Does not use filters that clog quickly and that must be changed frequently
• Fully automated cleaning by means of the control panel

Applications and fluids treated
Lubricating and hydraulic oil
The MACFUGE turnkey system is designed to preserve processes using mineral oil by removing water and particulate contamination; systems are installed on offshore platforms, power plants and heavy industry to guarantee performance and long-term operation of turbomachinery and equipment.

Liquid fuels
In the maritime field MACFUGE centrifuges treat marine diesel oil (MDO) and heavy fuel oil (HFO) to lower pollutant levels and increase fuel quality.

Scrubber water
MACFUGE centrifuges purify water used in exhaust gas cleaning circuits, removing soot and contaminants to meet marine discharge requirements.

Slop oil and sludge oil
MACFUGE systems reduce waste volume, recovering most of the usable oil and reducing disposal costs (incineration).

Process water
MACFUGE purifiers reduce pollution in process water to meet regulatory requirements, enabling reuse and reducing wastewater volume.

Deck drain and bilge water
MACFUGE centrifuges allow on-site treatment of contaminated water on offshore platforms and ships to comply with legal discharge parameters.

Caractéristiques / spécifications techniques

• Continuous separation of solids and water from combustible and lubricating oils
• Modular design to integrate electric heaters, sludge handling units and feed pumps
• Explosion-proof configuration available (ATEX)
• Suitable for use in Offshore, Sea, Explosive, Arctic and Tropical environments
• Higher centrifugal force than hydro cyclone technologies
• No flocculants required
• Low residual waste volume; recovers usable oil from slop/sludge
• Reduces equipment wear and extends oil/service life
• Fully automated cleaning via control panel
• Applicable to lubricating/hydraulic oils, marine fuels (MDO/HFO), scrubber water, process water, deck drain and bilge water
