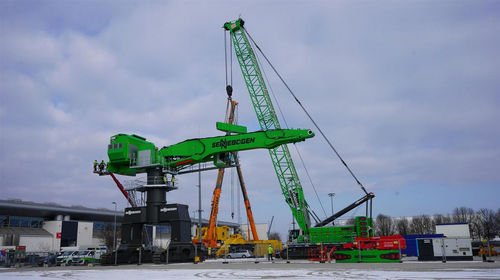

Kran auf Raupen 6220 E

Auslegerfür Hubanwendungendieselbetrieben

The SENNEBOGEN 6220 E sets new standards in the upper duty cycle crane class. Thanks to its robust construction, powerful engine, and modular configuration, the machine is flexible for a wide range of applications – whether offshore, dredging, special civil engineering, or as a powerful crane. Comfortable machine control, stable undercarriage, and self-assembly system ensure maximum efficiency and safety. Max. load capacity: up to 220 t Max. hook height: up to 74.7 m Max. winch: 2 x 350 kN Drive: Diesel engine: 563 to 708 kW Cabins: Maxcab Robust technology for the toughest conditions – configurable for individual requirements 220 t load capacity – ideal for heavy lifting and grab work in special civil engineering, dredging, and offshore applications Application-specific configuration thanks to modular system: engine variants up to 708 kW, individual ballast and winch options High rope capacity on the 1st layer for maximum pulling force (up to 350 kN) – ideal for great depths and reduced rope wear Wide range of applications: from diaphragm wall grab to hydraulic hammer, drop ball, and dragline bucket Strong performance even at an inclination of up to 4° – thanks to high ballast and robust boom construction Standard with two slewing drives for a strong slewing moment of 585 kN Intuitive operation, maximum safety, and ergonomics on the construction site New SENCON Load Control: intuitive assistance system with touchscreen and real-time ground pressure display Proven SENCON control system with complete machine and engine diagnostics Spacious Maxcab comfort cabin with standard tilt function (20°) and optional elevation (2.0 m) – ideal e.g. for dredging Standard height safety on the boom for more safety in daily operation Optional: railings, walkways, additional steps for safe access around the machine Self-assembly functions (e.g. for undercarriages or reeving) easily and safely via radio remote control Stability you can rely on – combined with easy mobilization Robust Starlifter undercarriage with 6,400 mm track width and 9,280 mm undercarriage length Standard with 1,000 mm flat shoes for low ground pressure and high stability Optional undercarriage ballast for even more stability in particularly demanding applications For transport: detachable undercarriages and approx. 65 t transport weight Quick commissioning thanks to well-thought-out self-assembly system with radio remote control Technical Specifications: Max. load capacity: up to 220 t Max. hook height: up to 74.7 m Max. winch: 2 x 350 kN Drive: Diesel engine, 563 to 708 kW Cabin: Maxcab, with tilt and optional elevation Undercarriage: Starlifter, 6,400 mm track width, 9,280 mm length Transport weight: approx. 65 t (with detachable undercarriages) Standard with two slewing drives (585 kN slewing moment) Self-assembly system with radio remote control Optional undercarriage ballast Standard 1,000 mm flat shoes Height safety on the boom Optional railings, walkways, additional steps
