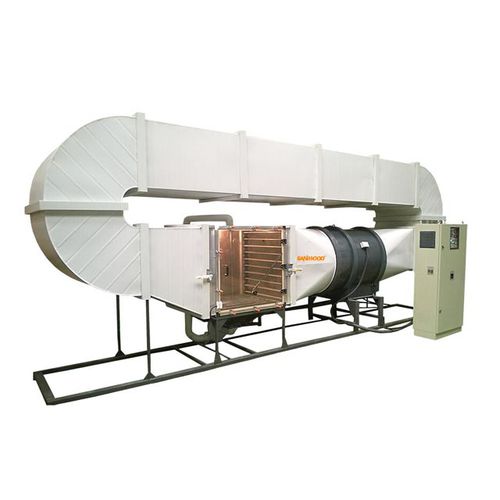

Staubkammer SM-SC-2000C

für QualitätskontrolleEdelstahl

Model SM-SC-500CSM-SC-1000CSM-SC-2000 Testing room volume 500L1000L2000L Technical characteristics Standard spacing of metal screens50um Standard spacing between lines 75um Amount of talc2Kg/m2~4Kg/m2 Dustfall form 1. Free fall dust type ：The dust is blown to 1/5 of the tank top by centrifuge to make it free settling 2. Dust blowing：Bottom air blast , three grades pressure is adjustable Size Inner size（mm)W*H*D800*800*8001000*1000*10001000*2000*1000 Outer size（mm)W*H*D1450*1700*10001650*1900*12001650*2900*1200 Control systemTesting roomAdvanced brushed stainless steel Shell Cold plate rust proof and plastic spraying treatment Operation panelDigital smart touch key input Operation modeConstant operation Input PT-100 sensor Auxiliary functionTiming Standard configuration With dust drying device, vibrator, sample holder, observation window (door) Safety protection Overload breaking protection, earthing protection, etc. Power supply AC380V TN-S
