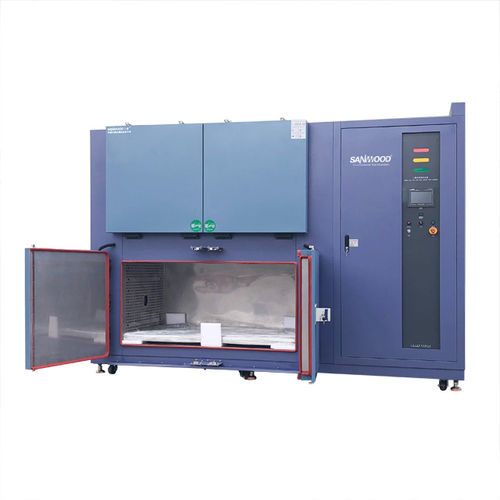

Thermoschock-Prüfkammer
Temperaturfür Qualitätskontrolleautomatisch

Thermoschock-Prüfkammer - Sanwood Technology - Temperatur / für Qualitätskontrolle / automatisch
Thermoschock-Prüfkammer - Sanwood Technology - Temperatur / für Qualitätskontrolle / automatisch
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Kontrollierter Parameter
Temperatur
Testart
Thermoschock
Einsatzbereich
für Qualitätskontrolle
Weitere Eigenschaften
automatisch
Volumen

Min: 50 l
(13 gal)

Max: 500 l
(132 gal)

Temperatur

Min: -55 °C
(-67 °F)

Max: 150 °C
(302 °F)

Innenlänge

350 mm, 400 mm, 500 mm, 650 mm, 960 mm
(13,78 in, 19,69 in, 25,59 in, 37,8 in)

Innenhöhe

400 mm, 460 mm, 500 mm, 600 mm, 650 mm
(15,75 in, 18,11 in, 19,69 in, 23,62 in, 25,59 in)

Innentiefe

350 mm, 400 mm, 500 mm, 670 mm, 800 mm
(13,78 in, 15,75 in, 19,69 in, 26,38 in, 31,5 in)

Außenlänge

1.400 mm, 1.450 mm, 1.550 mm, 1.700 mm, 2.050 mm
(55,1 in, 57,1 in, 61 in, 66,9 in, 80,7 in)

Außenhöhe

1.750 mm, 1.850 mm, 2.000 mm, 2.050 mm, 2.150 mm
(68,9 in, 72,83 in, 78,74 in, 80,71 in, 84,65 in)

Außentiefe

Min: 1.750 mm
(68,9 in)

Max: 2.450 mm
(96,46 in)

Beschreibung

Thermal Shock Chamber -Product Feature: 1.Thermal Shock Test Chamber Modern design, latest modular creation technology ,perfect control power. 2.The Three-zone Thermal Shock Chamber will automatically defroste after it cycle for 700H or more 3.Patent design initiative observation window to achieve visual effects 4.Color screen 32 control system Ethernet E management, USB data access, APP mobile platform management 5.Programmable load power 4 ON/OFF output control, to protect the products safety 6.Unique air circulation system 7.Unique anti condensation function and over temperature, breezeless, smoke protection function 8.Three-zone Thermal Shock Chamber Can expand the network video monitoring function, and data test synchronization 9.The most environmentally friendly refrigeration capacity control, energy saving and fast rising/cooling temperature rate 10. Auto return to room temperature setting 11.Diagnostic system for information on operating times and possible failures. 12.The device can expand the remote service function and provide the machine using a mathematical disc.

VIDEO

Kataloge

Für dieses Produkt ist kein Katalog verfügbar.

Alle Kataloge von Sanwood Technology anzeigen

Weitere Produkte von Sanwood Technology

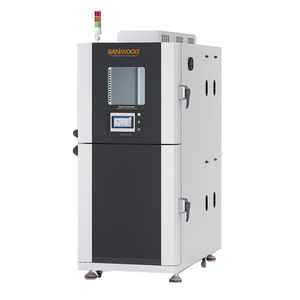

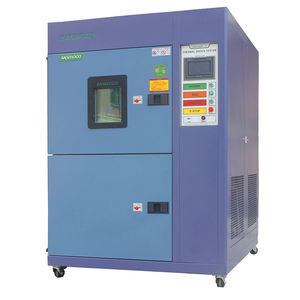

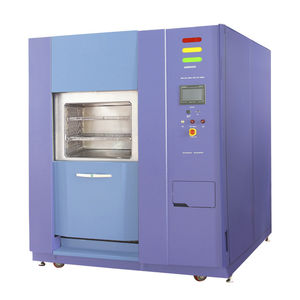

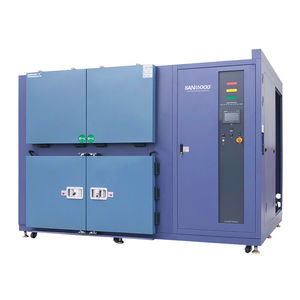

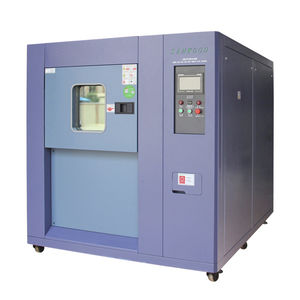

Thermal shock test chamber
