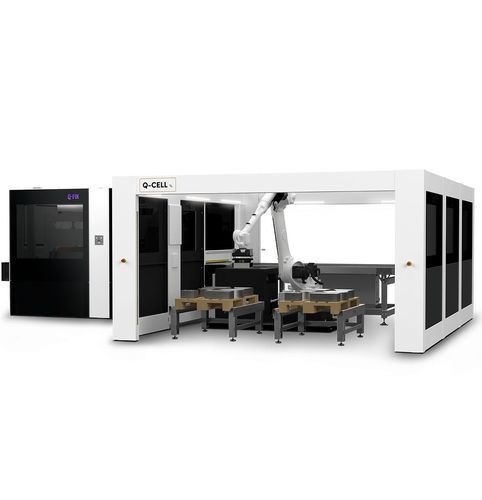

Roboterzelle zur Endbearbeitung Q-Cell Robot

zum Entladenzum Ladenfür Werkzeugmaschinen

The ultimate automation solution for your finishing processEnhance your finishing process and produce around the clock with the Q-Cell Robotzelle. The most efficient solution for fully automatic loading and/or unloading of sheet metal parts in combination with a 1200 or 1500 mm wide automatic Q-Fin finishing machine.Discover the Q-Cell Robotzelle from Q-Fin, the ultimate automation solution for efficiently placing undefined products on the input table of the Q-Fin finishing machine. Thanks to advanced 3D vision technology, the robot cell's camera precisely detects and recognizes products, allowing the robot to effortlessly position them on the input table. This robot even offers the possibility to place products in specific orientations, enabling you to achieve a perfect line finish in the desired direction.Once the input table is full, the Q-Cell Robotzelle automatically communicates with the Q-Fin finishing machine, resulting in the products being processed by the Q-Fin finishing machine. This leads to seamless serial production of the products. Furthermore, it offers the flexibility to install the robot cell on the output side of the Q-Fin finishing machine to enable fully automatic unloading of undefined products. Discover the efficiency and precision of the robot cell and optimize your production process.3D vision camera for product recognitionIndeterminate product pickupGripper with vacuum or magnetic fixationCoupled input/output conveyor for batch productionDetection of longitudinal directionERP package integration via APIAGV integration possible with Qonnect+Robot Cell 2MRobot Cell 3MCartesian CellAvailable asRC1200RC1200, RC1500CC1200, CC1500Maximum workpiece weight12 kg70 kg50 kgProduct fixationVacuum or magnet systemVacuum or magnet systemVacuum or magnet systemMinimum product thickness1 mm1 mm1 mmMaximum product thickness10 mm25 mm25 mmMinimum product dimensions120 x 120 mm120 x 120 mm120 x 120 mmMaximum product dimensions300 x 400 mm1200 x 800 mm1200 x 800 mmMachine connection value400 V | 50 Hz | 10 A400 V | 50 Hz | 16 A400 V | 50 Hz | 32 APallet size1200 x 800 mm1200 x 800 mm1200 x 800 mmSupport surface (L x W)2000 x 1200 mm3000 x 1200/1500 mm3000 x 1200/1500 mmDimensions (L x W x H)3000 x 3500 x 2200 mm5000 x 5000 x 2200 mm4700 x 4400 x 4300 mmSuitable forF1200, M1200 and SER1200F1200, F1500, M1200, M1500, SER1200 and SER1500F1200, F1500, M1200, M1500, SER1200 and SER15003D vision camera for product recognitionIndeterminate product pickupGripper with vacuum or magnetic fixationCoupled input/output conveyor for batch productionDetection of longitudinal directionERP package integration via APIAGV integration possible with Qonnect+
