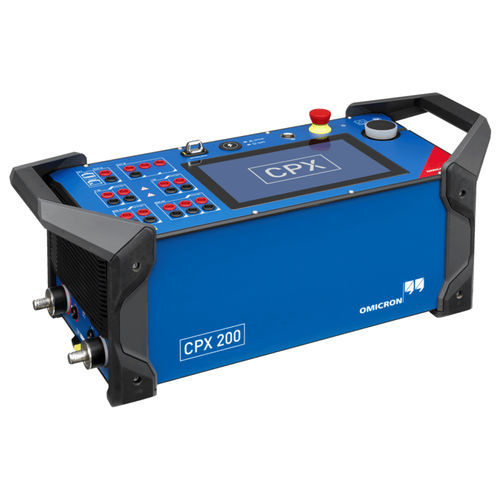

Spannungsprüfgerät CPX 200

StromLeistungsfähigkeitautomatisiert

CPX 200 – revolutionary excellence The CPX 200 is designed to meet both the requirements of today's energy systems and the challenges of tomorrow. As a compact, powerful, and particularly safe device, the CPX 200 sets new standards for next-generation multifunctional testing. Developed in accordance with internationally recognized standards, the CPX 200 meets all current safety and cyber security requirements. It is ideal for commissioning and diagnostic testing of medium and high voltage equipment in switchgear. Whether hardware, software, or accessories – the CPX 200 offers top performance for long-term reliability and maximum benefit.WATCH KEYNOTEFor testing power transformers, instrument transformers, and switchgearThe integrated high-current module and the compact high-voltage source HVX10 expand the range of applicationsAccessories can be added via “Click & Play”Versatile transport options with backpack and transport caseGuided test procedures with customizable PC software CPXpertFast operation via CPX TouchControlEfficient analysis with our pioneering cloud system CORTEX GridCombined measurement channels to reduce wiring effortTrue 3-phase voltage sourceMulti-touch color display with automatic brightness adjustmentGuided testing with extensive support for nameplate dataA unified user interface for testing various equipmentComplete and automatic documentation of test resultsOptimized test plans and test report creation – from start to finishPrimary injection at its finest:1000 A AC/DC with high-current module10 kV AC/DC with HVX10Test frequency range: 1–600 Hz and DCHigh measurement accuracySafety features reduce the risk of electrical hazards:Red and green signal lightsEmergency stop buttonINTERLOCK keyEN 50191-compliant workflowWiring assistance with indicator lightsOptional accessory: external signal lamp* available soonSupports the full range of tests despite the low total system weight of under 30 kgCPX 200: 10.6 kgHigh-current module: 3.3 kgHVX10: 14.8 kgAvoid heavy lifting and freight restrictions with a lightweight system solutionKey Features / Technical Specifications:Compact multifunctional test device for commissioning, maintenance, and condition assessment of medium and high voltage equipmentIntegrated high-current module and compact high-voltage source HVX10Guided test procedures with customizable PC software CPXpertFast operation via CPX TouchControlEfficient analysis with CORTEX Grid cloud systemCombined measurement channelsTrue 3-phase voltage sourceMulti-touch color display with automatic brightness adjustmentComplete and automatic documentation of test resultsOptimized test plans and test report creationRed and green signal lights, emergency stop button, INTERLOCK key, EN 50191-compliant workflowWiring assistance with indicator lightsOptional external signal lampCPX 200 weight: 10.6 kgHigh-current module weight: 3.3 kgHVX10 weight: 14.8 kgPrimary injection: 1000 A AC/DC, 10 kV AC/DC, frequency range 1–600 Hz and DCHigh measurement accuracy
