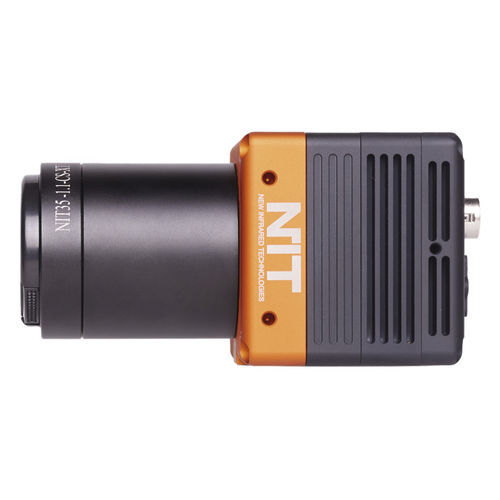

Hochgeschwindigkeitskamera TACHYON 16K+

für QualitätskontrolleIndustriefür wissenschaftliche Anwendungen

TACHYON 16K CAMERA & TACHYON 16K CAMERA PLUS • Uncooled MWIR 128×128 pixels infrared camera with high-speed frame rates (4,000 fps max) • Uncooled MWIR 128×128 pixels infrared camera with high-speed frame rates (4,000 fps max) • Maximum added value and afordability to ensure a full integration in the INDUSTRY 4.0 applications • Configurable ROI windowing (allows faster frame rates) • Multiple industrial applications: Machine Vision, AM/laser process monitoring, gas detection, QA COMMON SPECIFICATIONS IR DETECTOR : VPD PbSe FPA with digital bus and uncooled operation FPA FORMAT : 128×128 pixels (16384 total) PIXEL SIZE : 50 um (square format) SPECTRAL RANGE : MWIR (1.0 a 5.0 microns) PEAK WAVELENGTH OF DETECTION : 3.7 microns MINIMUM TEMPERATURE OF DETECTION : 100 ºC DATA COMMUNICATION : 14 bit COMMUNICATION INTERFACE : GigE VISION 2.0 with PoE TRIGGER : In / Out (through expansion port) Note: I/O Expansion port cable available as additional accessory FRAME RATE : TACHYON 16k CAMERA: 2000 images per second (max @128×128), interlaced TACHYON 16k CAMERA PLUS: 4000 images per second (max @128×128), snapshot The acquisition frame rate is dependent on the configuration used Allows higher frame rates using embedded ROI windowing functions STARTING TIME - : Less than 10 seconds POWER : 8 W (PoE injector with power supply included) EXTERNAL HOUSING : Metallic, with optical interface CS-mount, rear connectors and tripod screw OPTICS : Silicon lens with AR coating (1 – 5 um), f=35 mm, F#1.1, FoV: 10.5ºx10.5º, manual focus. CS-mount, exchangeable (standard option) Ask for additional lens options DIMENSIONS (NO LENS, MM), WEIGHT : 66 x 62 x 62 400 grams
