Expansions-Computer SEMIL-2200GC

Edge AIRackwandmontiert

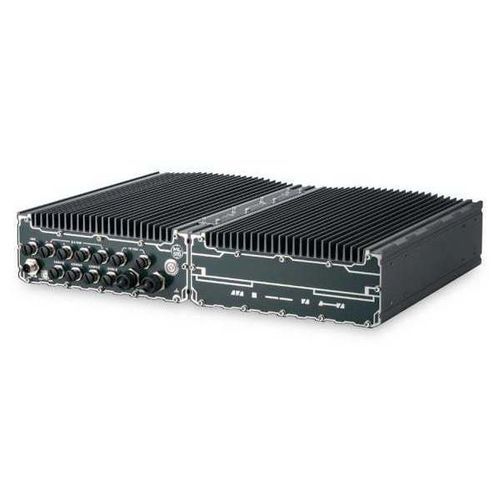

Product OverviewThe SEMIL-2200GC is a state-of-the-art, AI-capable mission-critical computer designed for demanding environments. Housed in a 2U 19-inch rack-mount chassis, this IP69K-certified system is impervious to dust, water, and can operate flawlessly in environments from -40°C to 70°C. The SEMIL-2200GC can maintain GPU performance up to its throttling point of 58°C. At its core is an NVIDIA® L4 GPU, paired with Intel 14th, 13th, or 12th Gen processors for exceptional computing power and efficiency.The SEMIL-2200GC uses a corrosion-resistant stainless steel and aluminum chassis to protect against moisture and salt. Its rugged M12 connectors withstand shock and vibration, making it ideal for harsh industrial and field deployments. Comprehensive connectivity includes dual CAN Bus 2.0, multiple USB 3.2, and seven Ethernet ports, including two 10GbE for high-speed device connections.The SEMIL-2200GC is MIL-STD-810H compliant, proving its resistance to extreme temperatures, humidity, vibration, and shock. It also meets MIL-STD-461G standards, ensuring immunity to electromagnetic interference. For mobile or vehicle applications, this platform meets MIL-STD-1275D requirements. With outstanding performance, robust construction, and adherence to strict military standards, the SEMIL-2200GC is the ideal solution for critical applications requiring reliability, durability, and advanced AI capabilities.2U IP69K mission-critical GPU computer with NVIDIA® L4 GPUUp to 128 GB ECC/non-ECC DDR5 4800 SDRAM-40°C to 70°C wide-temperature fanless operation2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors2x SocketCAN and 2x USB3.2 Gen1 Type-C with DP alternate mode9V to 36V wide-range DC input with built-in ignition power controlMIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliantTechnical SpecificationsProcessorSupports Intel® 14th/13th/12th Gen Core™ CPUs (LGA1700 socket, 35W TDP):- Intel® Core™ i9-14900T, i7-14700T, i5-14500T, i3-14100T- Intel® Core™ i9-13900TE, i7-13700TE, i5-13500TE, i3-13100TE- Intel® Core™ i9-12900TE, i7-12700TE, i5-12500TE, i3-12100TEChipsetIntel® R680E platform controller hubGraphicsIntegrated Intel® UHD Graphics 770 (32EU)Acceleration GPUNVIDIA® L4 GPUMemoryUp to 128 GB ECC/non-ECC DDR5 4800 SDRAM (two SODIMM slots)AMTSupports Intel vPro/AMT 16.0TPMSupports dTPM 2.0I/O InterfaceEthernet Port2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded)4x 2.5GbE Ethernet by Intel I226-IT (M12 X-coded)1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)CAN Bus2x isolated CAN 2.0 port, supporting SocketCAN in LinuxUSB2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort)2x USB 2.0 ports (M12 A-coded)Video Port2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)Serial Port2x isolated 3-wire RS-232 ports (COM1/COM2)1x isolated 3-wire RS232 (COM3) & 1x RS-422/485 port (COM4)Storage InterfaceSATA HDD2x Internal SATA port for 2.5” HDD/SSD installation, supporting RAID 0/1M.21x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSDExpansion BusMini PCI-E3x full-size mini PCI Express socket with SIM slotM.21x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/4G module1x M.2 2230 E key socket for Wi-FiPower SupplyDC Input9V to 36V DC input with reverse polarity protection (M12 L-coded)Ignition ControlBuilt-in ignition power control (IGN/GND signal via M12 L-coded connector)MechanicalDimension440mm (W) x 310mm (D) x 90.5mm (H) (excluding rack-mount bracket)Weight12.2kgMountingRack-mounting (standard) and wall-mounting (standard)EnvironmentalOperating Temperature-40°C to 70°CStorage Temperature-40°C to 85°CHumidity10%~90%, non-condensingVibrationMIL-STD-810H, 514.8C-IV. Category 4ShockMIL-STD-810H: 516.8 Procedure IEMCMIL-STD-461G:- CE102 (10kHz~10MHz)- RE102 (2MHz~18GHz)- RS103 (2MHz~18GHz, 50V/m)Electrical SystemsMIL-STD-1275D: Normal operating mode (ripples, surges, spikes)Ingress ProtectionIP69KOrdering InformationSEMIL-2247GC: 2U 19" rack-mount IP69K mission-critical GPU computer with NVIDIA® L4, supports Intel® Core™ 14th/13th/12th Gen, with 2x M12 10GbE and 4x M12 2.5GbE portsOptional AccessoriesPA-280W-CW6P-2P: 280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C with Wafer FML6P to 2P end cable for AWP/SEMILCbl-TpCPlug-DPM-1M: Type-C plug to DP plug cable, length: 1MCbl-TpCPlug-U3TA-50CM: Type-C plug to USB3.0 Type-A socket, length: 50CMCbl-TpCPlug-UTpCF-50CM: Type-C plug to USB Type-C socket cable, length: 50CMCbl-M12X8M-RJ45-500CM: M12 (8-pin X-coded) to RJ45, CAT6, length: 500CMCbl-M12A8M-2U2TA-180CM1: M12 (8-pin A-coded) to 2x USB 2.0 Type A (socket), length: 180CMCbl-M12A8M-2DB9M_OW2-180CM1: M12 A-Code plug 8P to 2x DB9 plug+2P, length: 180CMCbl-M12A8M-2DB9M-180CM: M12 (8-pin A-coded plug) to 2x DB9 plug, length: 180CMCbl-M12L5F-CordEnd5-180CM: M12 L-Code 5P (socket) to cord end 5P, length: 1.8MSEMIL-2000 M12 Cable KitCblkit-M12-SEMIL2007: 7x Cbl-M12X8M-RJ45-500CM, 2x Cbl-M12A8M-2DB9M_OW2-180CM1 (COM1/2 & CAN1/2), 1x Cbl-M12L5F-CordEnd5-180CM, 1x Cbl-M12A8M-2U2TA-180CM1, 1x Cbl-M12A8M-2DB9M-180CM (COM3/4)Key Features / Technical Specifications2U 19" rack-mount, IP69K-rated, mission-critical GPU computerSupports NVIDIA® L4 GPUSupports Intel® 14th/13th/12th Gen Core™ CPUs (LGA1700, 35W TDP)Up to 128 GB ECC/non-ECC DDR5 4800 SDRAMOperating temperature: -40°C to 70°C (fanless)Ethernet: 2x 10GbE, 4x 2.5GbE, 1x GbE (all M12 X-coded)2x isolated CAN 2.0 ports (SocketCAN in Linux)2x Type-C USB 3.2 Gen1x1 (5Gbps, shared DP), 2x USB 2.0 (M12 A-coded)2x isolated 3-wire RS-232, 1x isolated 3-wire RS232, 1x RS-422/4852x internal SATA for 2.5” HDD/SSD (RAID 0/1), 1x M.2 2280 M key NVMe (PCIe Gen4x4)3x full-size mini PCIe with SIM slot, 1x M.2 2242/3052 B key (dual SIM for 5G/4G), 1x M.2 2230 E key (Wi-Fi)9V to 36V DC input, reverse polarity protection, built-in ignition power controlDimensions: 440mm x 310mm x 90.5mm (excluding rack-mount bracket)Weight: 12.2kgMounting: rack-mount and wall-mount (standard)MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliantIngress protection: IP69K
