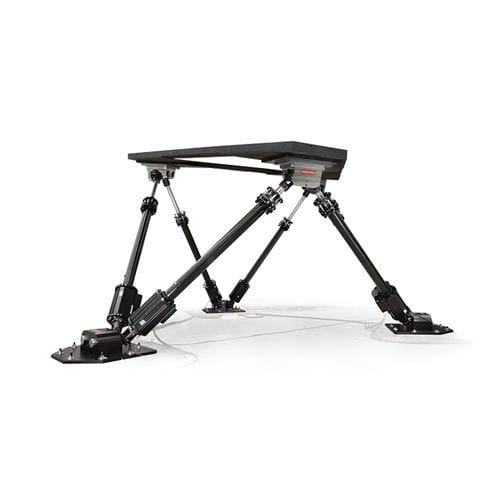

Bewegungs-Hexapod E60

für Industrieanwendungenfür schwere LastenPräzision

Kurzbeschreibung
Wählen Sie Ihr System aus einer Vielzahl an unterschiedlichen Aktuator-Hublängen und Traglasten aus. Unsere elektrischen 6-DOF-Bewegungssysteme liefern präzise, reproduzierbare Plattformbewegungen mit einer Verfügbarkeit von mehr als 99,8 % und eignen sich für Prüfstände, Simulatoren und schwere Bewegungsanwendungen.

E12-Serie — MB-E-6DOF/12/500KG

• PAYLOAD WEIGHT: 500 kg / 1,102 lb
• Heave (max): ±0.19 m (±7.5 in)
• Degrees of Freedom: Six
• Acceleration — Surge: ±6.0 m/s² (±0.61 g); Sway: ±6.0 m/s² (±0.61 g); Heave: ±8.0 m/s² (±0.82 g)
• Velocity — Surge: ±0.60 m/s (±23.6 in/s); Sway: ±0.60 m/s (±23.6 in/s); Heave: ±0.50 m/s (±19.7 in/s)
• Angular rates — Roll: ±300°/s² (±40.0°/s); Pitch: ±300°/s² (±50.0°/s); Yaw: ±500°/s² (±50.0°/s)

E12-Serie — MB-E-6DOF/12/1500KG

• PAYLOAD WEIGHT: 1,500 kg / 3,307 lb
• Heave (max): ±0.19 m (±7.5 in)
• Degrees of Freedom: Six
• Acceleration — Surge: ±6.0 m/s² (±0.61 g); Sway: ±6.0 m/s² (±0.61 g); Heave: ±8.0 m/s² (±0.82 g)
• Velocity — Surge: ±0.60 m/s (±23.6 in/s); Sway: ±0.60 m/s (±23.6 in/s); Heave: ±0.50 m/s (±19.7 in/s)
• Angular rates — Roll: ±300°/s² (±40.0°/s); Pitch: ±300°/s² (±50.0°/s); Yaw: ±500°/s² (±50.0°/s)

E26-Serie — MB-E-6DOF/26/1800KG

• PAYLOAD WEIGHT: 1,800 kg / 3,968 lb
• Heave (max): ±0.41 m (±16.1 in)
• Degrees of Freedom: Six
• Acceleration — Surge: 7.0 m/s² (0.7 g); Sway: 7.0 m/s² (0.7 g); Heave: 10.0 m/s² (1.0 g)
• Velocity — Surge: 0.80 m/s (31.4 in/s); Sway: 0.80 m/s (31.4 in/s); Heave: 0.60 m/s (23.6 in/s)
• Angular rates — Roll: 250°/s² (±35.0°/s); Pitch: 250°/s² (±35.0°/s); Yaw: 500°/s² (±40.0°/s)

P26-Serie — MB-EP-6DOF/26/3000KG

• PAYLOAD WEIGHT: 3,000 kg / 6,613 lb
• Heave (max): ±0.41 m (±16.1 in)
• Degrees of Freedom: Six
• Acceleration — Surge: ±6.3 m/s² (0.63 g); Sway: ±6.3 m/s² (0.63 g); Heave: ±9.0 m/s² (0.90 g)
• Velocity — Surge: ±0.80 m/s (31.4 in/s); Sway: ±0.80 m/s (31.4 in/s); Heave: ±0.60 m/s (23.6 in/s)
• Angular rates — Roll: ±200°/s² (±35.0°/s); Pitch: ±200°/s² (±35.0°/s); Yaw: ±400°/s² (±40.0°/s)

E60-Serie — MB-E-6DOF/60/14000KG

• PAYLOAD WEIGHT: 14,000 kg / 30,865 lb
• Heave (max): ±0.97 m (±38.4 in)
• Degrees of Freedom: Six
• Acceleration — Surge: ±7.0 m/s² (0.71 g); Sway: ±7.0 m/s² (0.71 g); Heave: ±9.0 m/s² (0.91 g)
• Velocity — Surge: ±1.0 m/s (±39.4 in/s); Sway: ±1.0 m/s (±39.4 in/s); Heave: ±0.80 m/s (±31.5 in/s)
• Angular rates — Roll: ±150°/s² (±22.0°/s); Pitch: ±150°/s² (±21.0°/s); Yaw: ±150°/s² (±25.0°/s)

P60-Serie — MB-EP-6DOF/60/14000KG

• PAYLOAD WEIGHT: 14,000 kg / 30,865 lb
• Heave (max): ±0.960 m (±37.8 in)
• Degrees of Freedom: Six
• Acceleration — Surge: ±6.5 m/s² (0.66 g); Sway: ±6.5 m/s² (0.66 g); Heave: ±9.0 m/s² (0.92 g)
• Velocity — Surge: ±1.00 m/s (39.4 in/s); Sway: ±1.00 m/s (39.4 in/s); Heave: ±0.80 m/s (31.5 in/s)
• Angular rates — Roll: ±150°/s² (±22.0°/s); Pitch: ±150°/s² (±21.0°/s); Yaw: ±250°/s² (±25.0°/s)

Verfügbare Literatur / Broschüren (Auswahl)
Mehrere Overview-Broschüren und Kataloge zu P60, E60 und kleinen Bewegungssystemen sind verfügbar.
