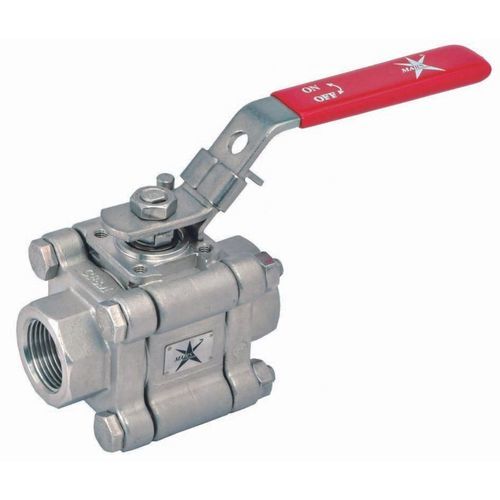

Kugelventil 83 series

manuellAbsperr3-teilig

Übersicht
Die Series 83 ist eine Reihe 3-teiliger feuerfester Kugelhähne mit 32 verfügbaren Varianten in verschiedenen Größen und Ausführungen.

Produktübersicht

• Konstruktion: 3-teilig, feuerfeste Ausführung
• Dichtungen: PTFE / RTFE
• Gehäusematerialien: CF8M und WCB
• Durchgangsoptionen: Full Port und Reduced Port
• Angezeigte Größen: 1/4" bis 2"
• Druckstufen: bis zu 2000 PSI bei kleineren Größen, 1500 PSI bei einigen größeren Größen

Modelle / Varianten (SKU | Größe | Durchgang | Gehäuse | Druckstufe | Dichtungen | Konstruktion | Preis)
V83-FS-1-4IN-FULL-PORT-CF8M | 1/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-1-4IN-FULL-PORT-WCB | 1/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-3-8IN-FULL-PORT-CF8M | 3/8" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-3-8IN-FULL-PORT-WCB | 3/8" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-1-2IN-FULL-PORT-CF8M | 1/2" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £36.50
V83-FS-1-2IN-FULL-PORT-WCB | 1/2" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £29.26
V83-FS-1-2IN-REDUCED-PORT-CF8M | 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £34.65
V83-FS-1-2IN-REDUCED-PORT-WCB | 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.87
V83-FS-3-4IN-FULL-PORT-CF8M | 3/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £44.81
V83-FS-3-4IN-FULL-PORT-WCB | 3/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £35.88
V83-FS-3-4IN-REDUCED-PORT-CF8M | 3/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £37.42
V83-FS-3-4IN-REDUCED-PORT-WCB | 3/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £30.03
V83-FS-1IN-FULL-PORT-CF8M | 1" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £58.67
V83-FS-1IN-FULL-PORT-WCB | 1" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £46.97
V83-FS-1IN-REDUCED-PORT-CF8M | 1" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £47.74
V83-FS-1IN-REDUCED-PORT-WCB | 1" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £38.50
V83-FS-1-1-4IN-FULL-PORT-CF8M | 1 1/4" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £81.93
V83-FS-1-1-4IN-FULL-PORT-WCB | 1 1/4" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £65.60
V83-FS-1-1-4IN-REDUCED-PORT-CF8M | 1 1/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £61.60
V83-FS-1-1-4IN-REDUCED-PORT-WCB | 1 1/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £49.13
V83-FS-1-1-2IN-FULL-PORT-CF8M | 1 1/2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £116.89
V83-FS-1-1-2IN-FULL-PORT-WCB | 1 1/2" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £88.70
V83-FS-1-1-2IN-REDUCED-PORT-CF8M | 1 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £92.25
V83-FS-1-1-2IN-REDUCED-PORT-WCB | 1 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £70.22
V83-FS-2IN-FULL-PORT-CF8M | 2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £156.16

Hinweise
• Die angegebenen Preise sind die Seitenpreise für einzelne Varianten wie aufgeführt (Währung GBP).
• Sowohl CF8M- als auch WCB-Gehäuseoptionen sind für verschiedene Größen und Durchgangstypen verfügbar.
