Absolutes Manometer LEO Ultimate

Relativdruckdigitalelektronisch

Product Description

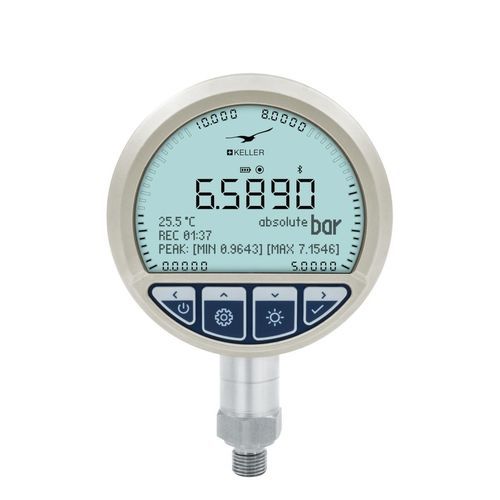

The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device.
Thanks to the integrated barometer, it is possible to switch between absolute and relative pressure types at any time without the need for additional sensors, allowing flexible use in a variety of applications.
The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. The device includes a data logger function for recording measurements over extended periods.
Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. In combination with the PressureSuite software, measurement data can be visualised and documented.
The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.

Main features

• Piezoresistive measurement technology
• Integrated barometer for switching between absolute and relative pressure
• Multiple measurement modes for static and dynamic profiles
• Leakage test capability
• Built-in data logger for long-term recording
• USB-C and Bluetooth BLE interfaces for parameterisation and data retrieval
• Robust metal housing with IP67 protection and clear display

Caractéristiques / spécifications techniques

• Pressure ranges: -1...1 to 0…1000 bar (also specified: -15…15 to 0…15000 psi)
• Accuracy: ±0.05 %FS (optional ±0.01 %FS)
• Total Error Band: ±0.05 %FS @ 0…50 °C
• Interfaces: USB 2.0 (USB-C) and Bluetooth BLE
• Special characteristic: High-precision reference instrument
• Protection class: IP67 (robust metal housing)
