Drehdurchführung für Wasser BCI™

für StranggussanlagenStahlWälzlager

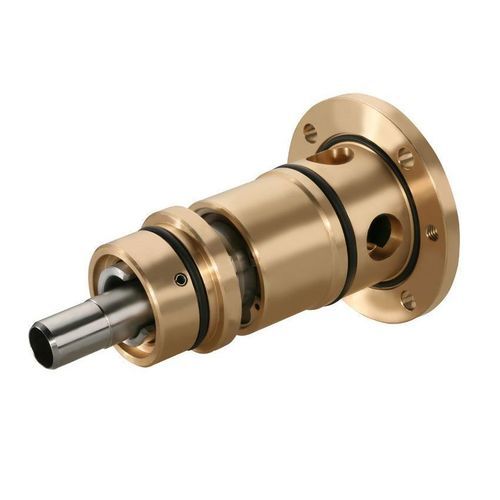

Bearing Cover Inserted (BCI) rotary unions are used in continuous casting for steel segment rolls with water operation. This self-centering device is mounted in the bearing housing to protect the rotary union from breakouts and eliminate lateral stress caused by external flexible hoses. The ability to handle misalignments, the large cross-section, and the simple design make this rotary union the preferred model for all new and refurbished roll segments in the continuous casting area. Field tests have shown that the BCI rotary union can be used in multiple runs without repairs. US Patent No. 7,004,509 - Properties: - Installation in the bearing housing - No need for external flexible hoses - Custom design and manufacturing - Available with elastomer or mechanical seal - High CV flow values - The rotary union can be overhauled without removing the bearing housing - Axial play up to 10 mm - Advantages: - Protection of the rotary union from breakouts - Elimination of lateral stress - Flexible application - Efficient over multiple runs - Continuous cooling, large cross-sections - Easy installation and repair - Tolerates thermal expansion of the roll Customized Solutions: Your application requires a special solution? The Kadant Johnson team, specializing in product innovations, focuses on finding the best solution in the shortest possible time. With great commitment, the Kadant Johnson development team provides technologies that meet customer requirements. Our goal is to develop reliable, efficient, and technically sophisticated products in close cooperation with our customers, creating added value by improving operations and the quality of the end product. - Technical Specifications / Features: - Self-centering installation in bearing housing - Eliminates need for external flexible hoses - Customizable design and manufacturing - Available with elastomer or mechanical seal - High CV flow rates - Can be serviced without removing bearing housing - Axial play up to 10 mm - Protects against breakouts - Reduces lateral stress - Suitable for multiple operational cycles without repair - Continuous cooling with large cross-sections - Easy installation and repair - Tolerates thermal expansion
