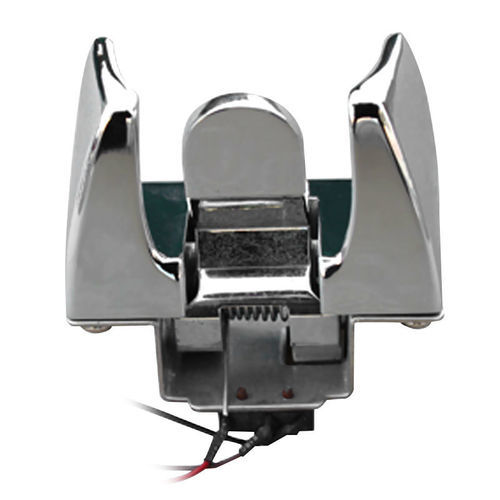

Haken für Telefon H2

EdelstahlEdelstahl

Model
Model: H2

Material
Stainless steel

Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, provides good anti-corrosion and protection against external damage to ensure excellent performance. The Hook is suitable for outdoor public telephones.

Standard
GB/15279-94 Automatic telephone technical conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods

Conditions of use

• Service Environment: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108 KPa

Main structure parts

• a. 600# hanging for zinc aluminum casting, polishing and chromium plating on the surface, good appearance
• b. Hang tongue for zinc aluminum casting, polishing and chromium plating on the surface, good appearance
• c. Selects high quality universal switch, on resistance: 0.1, cable length L: 150

Insulation resistance
Between switch lead wires and metal shell, tested with TH2681A insulation resistance tester (DC 250 V), insulation resistance: 50MΩ

Withstand voltage
Between switch lead wires and metal shell, tested with ET2670A hipot tester, requirements: AC1600V/50Hz/1min, leakage current: 0.5mA; no flashover or breakdown phenomenon should occur.

Caractéristiques / spécifications techniques

• Modèle: Kntech H2
• Matériau: Stainless steel
• Surface finish: copper/nickel/chrome plating
• Plage de température de service: -25~55℃
• Humidité relative: 10%~95%
• Pression atmosphérique: 96~108 KPa
• Switch on-resistance: 0.1 Ω
• Câble longueur (L): 150 (unit as provided on page)
• Insulation resistance (DC250V): 50 MΩ
• Withstand voltage: AC1600V/50Hz/1min, leakage ≤ 0.5 mA
• Conforme aux normes: GB/15279-94; YDN109-1998 (chap. 4)
