Winkeleisenmontierter Lautsprecher KNSIPLB-Ex15

für Gefahrenzonenwasserdichtwetterbeständig

Overview

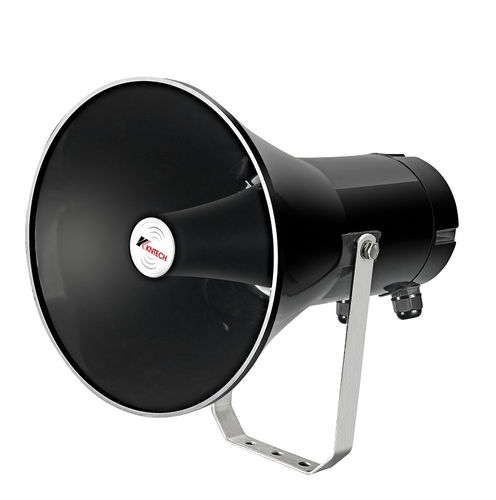

Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15. The KNSIPLB-Ex15 Network Speaker is a simple-to-install explosion-proof loudspeaker that provides clear, long-range speech for remote speaking in video surveillance applications. It enables an operator to remotely address people and deter unwanted activity, and can play pre-recorded audio files when manually or automatically triggered. It easily integrates with Voice over IP (VoIP) telephone systems using SIP. The unit has a built-in amplifier and supports Power over Ethernet (PoE), connecting directly to an IP network with one network cable for communication and power. Despite low power consumption, it delivers high sound pressure (exceeding 92 dB) and can be used as a standalone, flexible, scalable and cost-effective solution.

Key Details

• Model: KNSIPLB-Ex15
• Size: 413*254*277MM
• Material / Colour: Anti-static Polyamide / Black
• Waterproof / Dust proof rating: IP66
• Service temperature range: -40 °C to +55 °C
• Sound pressure level: exceeds 92 dB
• Supports SIP (VoIP) integration
• Power supply: Power over Ethernet (PoE)
• Built-in amplifier; supports pre-recorded audio and user-uploaded audio
• Certified explosion-proof by ATEX standard

Features

• Explosion-proof speaker design and certified by ATEX standard.
• Material/Colour: Anti-static Polyamide / Black.
• Waterproof rating IP66; dust proof IP66.
• Service temperature range from -40 °C to +55 °C.
• Designed for 360° lossless broadcast.
• IP Network Horn Speaker that is explosion-proof and waterproof.
• Intended for public address and paging applications.
• Applications include petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels and other projects requiring explosion-proof grade speaker.

Applications

• Petroleum, metallurgy, chemical industry, offshore oil, nuclear power, shipbuilding, tunnels and other hazardous-area projects requiring explosion-proof speakers.

Product Packing
Unit size: 250 (∅)*352(L) mm
Unit G.W: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm G.W: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm G.W: 7.8 kg

Caractéristiques / Spécifications techniques

• Model: KNSIPLB-Ex15
• Type: Explosion-proof IP network horn speaker (SIP)
• Material: Anti-static polyamide; Colour: Black
• Ingress protection: IP66 (waterproof & dust proof)
• Operating temperature: -40 °C to +55 °C
• Sound pressure: >92 dB (high SPL)
• Amplifier: Built-in amplifier
• Network & protocol: SIP (VoIP) compatible; supports remote live announcements and playback of pre-recorded audio; user audio upload supported
• Power: Supports Power over Ethernet (PoE) for combined power and communication via single cable
• Certification: ATEX explosion-proof certification
• Dimensions: 413 x 254 x 277 mm (product); packing and unit size details as above
• Unit gross weight: 3.7 kg; carton gross weight (2 pcs): 7.8 kg
