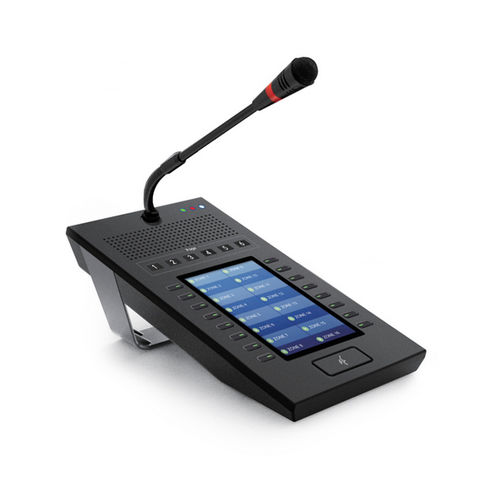

PoE-Rufsäule KNPA800miniEthernetfür Beschallungsanlagemit Leuchtanzeige
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen
Eigenschaften
- Netzwerk
- PoE, Ethernet
- Anwendung
- für Beschallungsanlage
- Weitere Eigenschaften
- Notfall, ABS, mit Leuchtanzeige, mit Bildschirm, Paging-Einheiten
- Lärmpegel
60 dB
Beschreibung
Product
Paging Microphone / PA Call Station. Call Station with a Gooseneck microphone.
Model & Basic Info
Key Functional Features & Benefits
Included Images / Visual Specification
Caractéristiques / spécifications techniques
Paging Microphone / PA Call Station. Call Station with a Gooseneck microphone.
Model & Basic Info
- Model: KNPA800mini
- Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
- Material: ABS (Acrylonitrile Butadiene Styrene)
Key Functional Features & Benefits
- Purpose-Built Design: Exclusively engineered for professional PA applications; EN 54-16 and ISO 7240-16 certified for safety compliance; CE marked and RoHS compliant; designed for 24x7 operation with energy-saving standby features.
- User-Friendly Interface: 16 (8*2) free-programmable buttons; 3.5-inch TFT display; clear power and communication status indicators; push-to-talk activation with visual confirmation; one button with security cover for emergency function; equipment supports 96 DSS keys (16*6 pages); integrated time-synchronization via GPS or local time servers.
- Superior Audio Management: Professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator (single-tone, 2-tone, 4-tone); high-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥60 dB.
- Flexible Broadcasting Capabilities: Selective zone, group-zone, and all-call paging; pre-recorded message distribution with zone targeting; live announcements with clarity; configurable emergency alert buzzer with adjustable volume and instant override; advanced scheduling (specific dates and repeated daily/weekly/monthly broadcasts); priority-based audio routing with emergency override functionality.
- Enterprise-Grade Reliability: Power over Ethernet (PoE) operation; dual Ethernet ports for network redundancy; no external power supply required; supports remote monitoring with visual and aural output level indicators; extended connectivity via CAT5 up to 100 m and Fiber + Pair cable up to 3 km.
Included Images / Visual Specification
- Product image and multiple detailed illustrations showing physical size, system topology, application scenarios and detailed product views (refer to image files hosted on the product page).
Caractéristiques / spécifications techniques
- Model: KNPA800mini
- Dimensions: 150 x 100 x 76 mm (excluding microphone)
- Material: ABS
- Display: 3.5-inch TFT
- Programmable buttons: 16 (8*2) free-programmable buttons
- DSS keys support: 96 DSS keys (16*6 pages)
- Microphone: Professional gooseneck unidirectional microphone; adjustable sensitivity and volume
- Aux input: 3.5 mm jack for wireless microphone input
- Audio processing: Software-configurable parametric equalization and limiting; built-in chime generator (single/2-tone/4-tone)
- Audio performance: Frequency response 100 Hz - 20 kHz; SNR ≥ 60 dB
- Paging modes: Selective zone, group-zone, all-call paging; pre-recorded message distribution and live announcements
- Emergency features: One-button emergency with security cover; configurable emergency buzzer with adjustable volume and instant override; priority-based audio routing with emergency override
- Time sync: Integrated time-synchronization via GPS or local Observatory time servers
- Network & power: Power over Ethernet (PoE); dual Ethernet ports for redundancy; no external power supply required
- Monitoring & connectivity: Remote monitoring with visual and aural output indicators; CAT5 up to 100 m; Fiber + Pair up to 3 km
- Compliance: EN 54-16, ISO 7240-16, CE marked, RoHS compliant
