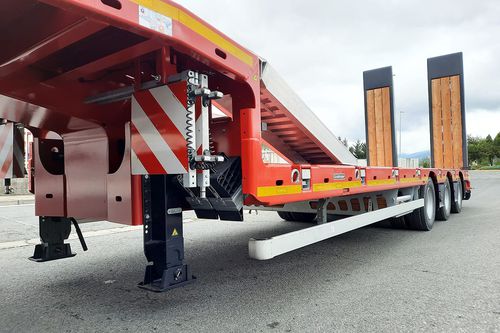

Plattform-Sattelauflieger STN-L 3 (245)

Gooseneck3-AchsenBaustellen

Semiauflieger EZ 04/2024 Neufahrzeug Preis auf Anfrage Ausstattung Luftfederung ABS EBS Vermietung möglich Fahrzeugbeschreibung GOLDHOFER 3-axle flatbed semi-trailer Type STN-L 3 (245) A “Stepstar” Maximum permissible laden weight: 18,500 kg 3 x 10 t Axle load: 30,000 kg (technical max. 12t axle load) Gross vehicle weight: 48,500 kg Dead weight: approx. 11,000 kg (without accessories) Dimension b: 11,370 mm • >MEGA> gooseneck - low overall height, rigid in center tube design - Length: 3,700 mm - Fifth wheel height: 950 mm - Forward deflection radius: 1,845 mm - Backward deflection radius: 2,100 mm - King pin: 2” - Anti-slip covering - Spare wheel holder on the front of the gooseneck - 3 pairs of lashing rings on the loading area of the gooseneck - 2 pairs of stanchion pockets • Loading area - Length: 9,300 mm (total length: 16,140 mm) - Width: 2,550 mm - Extendable: 6840 mm - Loading height : 855 mm (-60 mm / +140 mm) - Beveled rear of vehicle 8°, 550 mm in length - Sheet metal floor covering with anti-slip covering - Open steel storage box for extension planks mounted under the loading area, width 800 mm (max. payload 200 kg with even load distribution) - Rear support mechanically spring-loaded - 7 pairs of stanchion pockets in the outer frame of the loading area - 9 lashing points on loading area/rear area/outer frame (LC 10,000) - open steel storage box for extension planks under the loading area - extendable extension 3 m • 3-axle chassis: - wheelbase: 2 x 1,410 mm - Axle make: BPW Eco Max, air-suspended - 2 x rigid axle | 1 x friction-steered axle - Second loading height : 895 mm (-100 mm / +100 mm)
