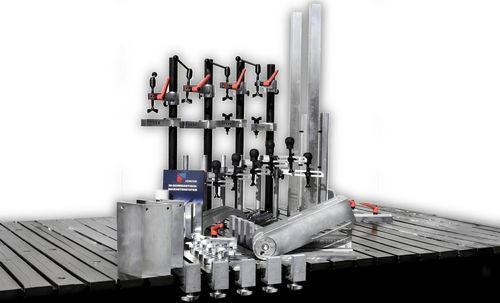

Mechanischer Spannsatz Set 3

für T-Rillezum Schweißenregelbar

Product overview
Our clamping sets contain carefully selected components specifically designed to benefit the user. Each set enables efficient clamping and flexible applications and is perfectly compatible with FÖRSTER welding tables – without unnecessary individual parts or sales gimmicks.

Delivery
Delivery time: 5 to 7 working days.

Contents (standard)

• 6 pcs. clamping arm with clamping element Ø 30 mm
• 6 pcs. clamping column complete, Ø 30 mm × 350 mm
• 4 flat clamps
• 4 pcs. clamping arm with clamping element Ø 50 mm
• 4 pcs. support arm Ø 50 mm
• 4 pcs. tension tower complete, Ø 50 mm × 900 mm
• 5 pcs. edge stop, height 70 mm, cast iron
• 2 pcs. double groove profile 1200 mm for mounting on stop bracket
• 6 pcs. flat stop
• 4 pcs. angle bracket 100 mm × 170 mm, cast iron
• 2 pcs. angle bracket 170 mm × 170 mm, cast iron
• 2 pcs. universal angle 600 mm × 350 mm, aluminum
• 1 pc. angle bracket, continuously adjustable, cast iron
• 2 pcs. universal angle 350 mm × 350 mm

Contents (stainless steel version)

• 6 pcs. clamping arm with clamping element Ø 30 mm (with brass pressure piece)
• 6 pcs. clamping column complete, Ø 30 mm × 350 mm
• 4 flat clamps (with stainless steel washer)
• 4 pcs. clamping arm with clamping element Ø 50 mm (with brass pressure piece)
• 4 pcs. support arm Ø 50 mm (with brass pad)
• 4 pcs. tension tower complete, Ø 50 mm × 900 mm
• 5 pcs. edge stop, height 70 mm (aluminum)
• 2 pcs. double groove profile 1200 mm for mounting on stop bracket
• 6 pcs. flat stop (aluminum)
• 4 pcs. aluminum angle brackets, 100 mm × 170 mm
• 2 pcs. aluminum angle brackets, 170 mm × 170 mm
• 2 pcs. universal angle 600 mm × 350 mm (aluminum)
• 1 pc. angle bracket, continuously adjustable (aluminum)
• 2 pcs. universal angle 350 mm × 350 mm

Caractéristiques / spécifications techniques

• Compatible with FÖRSTER welding tables (T-slot system)
• Set name / commercial designation: Set 3 (Frame and housing construction)
• Typical contents (examples): clamping arms, clamping columns, tension towers, support arms, flat clamps, stops, angle brackets, universal angles and profiles
• Key quantities and dimensions: e.g. 6 × clamping column Ø 30 mm × 350 mm; 4 × tension tower Ø 50 mm × 900 mm; double groove profiles 1200 mm; various angle brackets (100×170 mm, 170×170 mm, 350×350 mm, 600×350 mm)
• Materials: available in standard versions with cast iron / aluminum components; stainless-steel-adapted version available (brass pressure pieces on clamping points, stainless-steel washers where indicated)
• Execution options (product variants shown on page): "Execution for all welding work" and "Adapted for stainless steel processing"
• Delivery time: typically 5–7 working days
• Price: 5.730,00 EUR (per piece)
