Trockenlufttrockner FPES

Luftkompakthochleistungsfähig

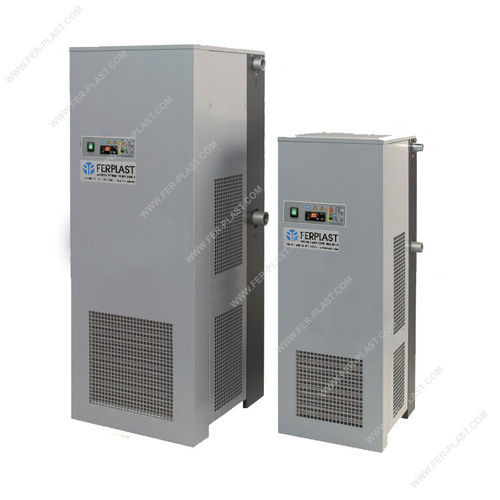

FPES High Temperature Dryer The FPES dryers enable the dehumidification and purification of compressed air used to power pneumatic devices, thereby increasing performance and reducing the risk of contamination, for example, of food during packaging. They consist of the cooling unit, pre-filter, and dryer. The dryer operates with a heat exchanger with copper pipes and aluminum cooling fins, a pre-filter with automatic condensate drain, and a heat exchanger module made entirely of aluminum with a patented design. Thanks to their vertical structure, they take up little space, operate even under extreme conditions (up to 50°C ambient temperature and 100°C inlet temperature), and are designed to allow high energy savings. They enable the treatment of compressed air according to high-quality standards in accordance with ISO 8573.1. The dryers are qualified for residual moisture class 5 and for the maximum concentration of solid contaminants in class 3. Model | Capacity | Connection | Power Supply | Dimensions (A x B x C) | Weight FPES 5 | 550 l/min - 33 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 30 kg FPES 8 | 850 l/min - 51 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 31 kg FPES 12 | 1200 l/min - 72 m³/h | G 1/2" BSP-F | 230 V - 1 Ph | 425x415x645 mm | 33 kg FPES 18 | 1800 l/min - 108 m³/h | G 1" BSP-F | 230 V - 1 Ph | 410x465x1130 mm | 50 kg FPES 23 | 2300 l/min - 138 m³/h | G 1" BSP-F | 230 V - 1 Ph | 410x465x1130 mm | 51 kg FPES 30 | 3100 l/min - 186 m³/h | G 1.1/4" BSP-F | 230 V - 1 Ph | 510x515x1240 mm | 61 kg FPES 40 | 4000 l/min - 240 m³/h | G 1.1/4" BSP-F | 230 V - 1 Ph | 510x515x1240 mm | 66 kg FPES 55 | 5500 l/min - 330 m³/h | G 1.1/2" BSP-F | 230 V - 1 Ph | 560x595x1400 mm | 75 kg FPES 60 | 6200 l/min - 372 m³/h | G 1.1/2" BSP-F | 230 V - 1 Ph | 560x595x1400 mm | 84 kg FPES 80 | 8100 l/min - 486 m³/h | G 2" BSP-F | 230 V - 1 Ph | 710x775x1500 mm | 132 kg FPES 100 | 10500 l/min - 630 m³/h | G 2" BSP-F | 230 V - 1 Ph | 710x775x1500 mm | 138 kg The data in the table refer to the following conditions: room temperature 32°C, air inlet temperature 80°C, air inlet pressure 7 barg – pressure dew point 7°C. Max. operating conditions: room temperature 50°C, air inlet temperature 100°C, and air inlet pressure 14 barg. - High temperature refrigeration dryer for compressed air - Vertical structure for space saving - Operates up to 50°C ambient and 100°C inlet temperature - Energy-saving design - Complies with ISO 8573.1, residual moisture class 5, solid contaminant class 3 - Heat exchanger with copper pipes and aluminum fins - Automatic condensate drain - Aluminum heat exchanger module with patented design
