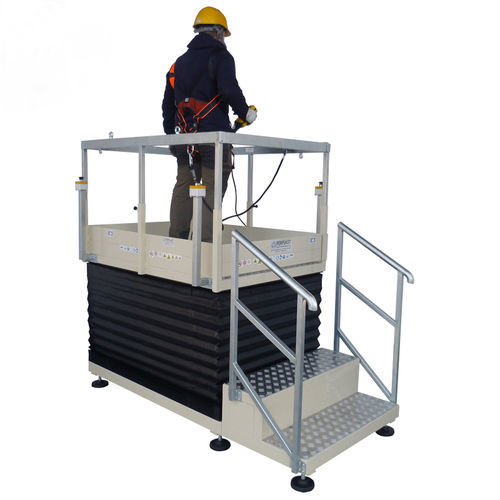

Festinstallierte Scherenarbeitsbühne HDLND2000

hydraulisch

HDLND 2000 MAINTENANCE PLATFORM Our lifting platform, specially designed for lifting people during work at height and maintenance operations, offers a combination of robustness and advanced functionality. It is made of high-quality steel and features a forklift-compatible structure with pallet truck access, ensuring easy handling and versatility in use. Manufactured with a robust double pantograph steel construction to ensure a maximum lifting height of 1940 mm, with a load capacity of 300 kg, suitable for lifting up to 2 people. 4 buttons to stop the CD ascent. Anti-crushing devices at a height of 500 mm and a recessed railing with manual latch closure on the two short sides to allow access for people and facilitate work at height. The steps and the upper platform are made entirely of non-slip checker plate aluminum to increase safety during use. The push-button panel with low-voltage control is positioned inside the platform and allows direct control from above. TECHNICAL FEATURES: - Built-in hydraulic unit, designed for 30% intermittent operation - Hydraulic system with overload safety valve - Control valve for descent speed - Oversized hydraulic cylinders with fall protection in case of pipe breakage - Joints with self-lubricating bushings - No. 4 ring bolts for belt attachment - Descent control on the subframe for emergency MODEL: HDLND 2000 Maximum capacity: 300 kg Minimum height: 550 mm Maximum height: 1940 mm Platform dimensions: 960 x 1410 mm Base dimensions: 970 x 1420 mm Lifting time: 35 - 45 sec. Power supply: 380 V - 50 Hz Power: 2.2 kW Acoustic emission: 70 dB Machine dimensions fully lowered: 1050 x 2100 x 1300 mm Platform weight: 563 kg
