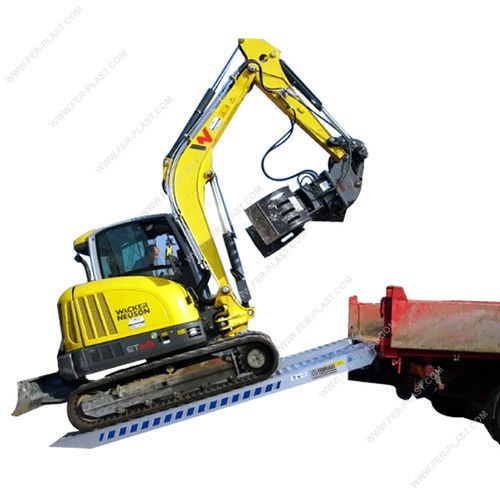

Loading Ramps Series FPH190-220The ramps of the FPH190-220 series are the perfect equipment for loading heavy vehicles and have been designed to ensure maximum resistance and safety when loading and unloading high-tonnage vehicles. These ramps are ideal for use in agriculture and earthmoving sectors and are the perfect solution for use with heavy excavators, large tractors, combine harvesters, and other agricultural or industrial vehicles.They are made from high-strength materials and reinforced structural profiles, offering a load capacity of up to 12,000 kg, ensuring stability even under the most extreme working conditions. The available length of up to 5,000 mm allows for a controlled incline suitable for high containers and platforms, ensuring safety even when maneuvering tracked vehicles.The ramps are available both with a 43 mm high side safety edge (for FPH190 models) or 50 mm (for FPH220 models), useful to prevent lateral slipping, as well as in a version without an edge.The FPH220 version has a maximum internal width of 500 mm, but a version with a larger width of 550 mm is also available on request, ideal for those who need a larger transit area.All models feature a non-slip, stepped surface that ensures maximum grip during use.CHOICE OF LENGTH:The choice of length is a fundamental aspect to ensure safe use of the ramp. This is calculated based on various factors:Loading height: The distance between the ground and the point where the ramp ends (usually the loading surface of a van). The higher this height, the longer the ramp must be to avoid too steep an incline.Ramp incline: It is recommended to maintain a maximum incline between 20% and 30% depending on the type of load.Product weight: Another fundamental aspect is the weight of the vehicle/equipment to be loaded. The shorter the ramp, the greater its load capacity, but also the steeper the incline.Based on this, we can roughly state:For a height of 95 cm, a ramp with a length of 3500 mm is recommendedFor a height of 110 cm, a ramp with a length of 4000 mm is recommendedFor a height of 125 cm, a ramp with a length of 4500 mm is recommendedFor a height of 145 cm, a ramp with a length of 5000 mm is recommendedTECHNICAL FEATURES FPH190-220MODELStructureCapacity (wheelbase 1500 mm)Capacity (wheelbase 1750 mm)Capacity (wheelbase 2000 mm)LengthInternal widthExternal widthWeight per pairFPH190-35SWithout edge9700 Kg10450 Kg10450 Kg3500 mm500 mm610 mm140 KgFPH190-40SWithout edge7700 Kg8580 Kg9650 Kg4000 mm500 mm610 mm163 KgFPH190-45SWithout edge6400 Kg6980 Kg7680 Kg4500 mm500 mm610 mm180 KgFPH190-50SWithout edge5450 Kg5870 Kg6360 Kg5000 mm500 mm610 mm200 KgFPH190-35BWith edge9700 Kg10450 Kg10450 Kg3500 mm500 mm595 mm140 KgFPH190-40BWith edge7700 Kg8580 Kg9650 Kg4000 mm500 mm595 mm160 KgFPH190-45BWith edge6400 Kg6980 Kg7680 Kg4500 mm500 mm595 mm174 KgFPH190-50BWith edge5450 Kg5870 Kg6360 Kg5000 mm500 mm595 mm196 KgFPH220-40SWithout edge1200 Kg12000 Kg12000 Kg4000 mm500 mm620 mm173 KgFPH220-45SWithout edge9600 Kg12000 Kg12000 Kg4500 mm500 mm620 mm194 KgFPH220-50SWithout edge8175 Kg8800 Kg9535 Kg5000 mm500 mm620 mm216 KgFPH220-40BWith edge12000 Kg12000 Kg12000 Kg4000 mm500 mm580 mm167 KgFPH220-45BWith edge9600 Kg12000 Kg12000 Kg4500 mm500 mm580 mm188 KgFPH220-50BWith edge8175 Kg8800 Kg9535 Kg5000 mm500 mm580 mm210 KgThe ramps are supplied complete with hole, but without anchoring accessories. It is the customer's responsibility to equip themselves with the appropriate fastening systems according to their operational requirements.Perfect for loading heavy vehicles in agriculture and earthmovingLoad capacity up to 12,000 kgAvailable lengths up to 5,000 mmAvailable with or without side edgeNon-slip stepped surfaceVarious models and sizes available
