Industrie-Container AN-PLA series

Sicherheitfür Materialumschlagfür Mülltrennung

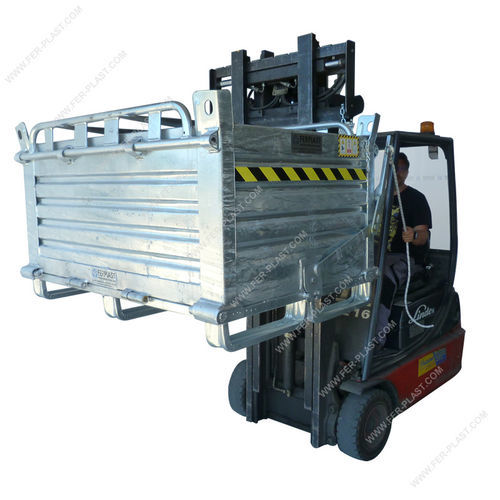

INDUSTRIAL DUMPERS WITH OPENABLE BOTTOM - (SINGLE OR DOUBLE) Metal containers made of painted steel, ideal for collecting and handling industrial production waste such as metal scraps, wood, waste, etc. They can be easily stacked and stacked with a forklift or lifted with a crane. The opening mechanism is designed so that the operator can empty the container directly from the driver's seat by operating a release lever. When emptying is complete, the bottom closes automatically by placing the container on the ground. For increased operator safety, there is a safety lock that prevents accidental opening during handling. The AN-PLA models are available in single or double door versions and in the RAL colors visible in the picture. On request, it is also possible to finish the boxes with hot-dip galvanizing. - Container with opening bottom, can be opened with one or two doors. - Load capacity: 2000 kg. MODEL | Bottom opening | Dimensions (AxBxC) | Foot height (D) | Crane hook height (E) | Volume | Load AN-PLA01 | 2 doors | mm 1000x800x650h | mm 114 | mm 100 | 0.5 m³ | 2000 Kg AN-PLA02 | 2 doors | mm 1000x800x1000h | mm 114 | mm 100 | 0.8 m³ | 2000 Kg AN-PLA03 | 2 doors | mm 1000x800x1250h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA04 | 2 doors | mm 1500x1000x650h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA05 | 2 doors | mm 2000x1000x1000h | mm 114 | mm 100 | 2 m³ | 2000 Kg AN-PLA06 | 2 doors | mm 1500x1000x1000h | mm 114 | mm 100 | 1.5 m³ | 2000 Kg AN-PLA011 | 1 door | mm 1000x800x650h | mm 114 | mm 100 | 0.5 m³ | 2000 Kg AN-PLA012 | 1 door | mm 1000x800x1000h | mm 114 | mm 100 | 0.8 m³ | 2000 Kg AN-PLA013 | 1 door | mm 1000x800x1250h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA014 | 1 door | mm 1500x1000x650h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA015 | 1 door | mm 2000x1000x1000h | mm 114 | mm 100 | 2 m³ | 2000 Kg AN-PLA016 | 1 door | mm 1500x1000x1000h | mm 114 | mm 100 | 1.5 m³ | 2000 Kg - Available in painted steel or hot-dip galvanized finish - Single or double door versions Technical Specifications: - Material: Painted steel (optionally hot-dip galvanized) - Bottom opening: 1 or 2 doors - Load capacity: 2000 kg - Volume: 0.5 m³ to 2 m³ depending on model - Stackable: Yes - Handling: Forklift or crane - Automatic bottom closing - Safety lock included
