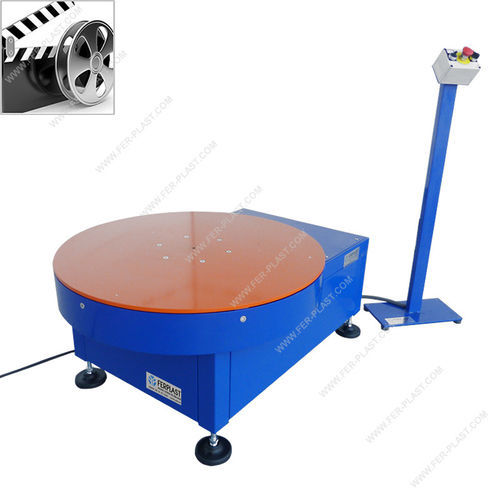

Packtisch FPR series

ROTARY PLATFORM FOR MANUAL WRAPPING The rotary platform is an ideal tool for rotating packages or for manually wrapping products with stretch film using a manual dispenser. The slow version (Model FPR800L/FPR1500L) is generally used for product inspection and for monitoring parameters such as drum leakage detection using sensors, and has a table rotation speed adjustable by frequency inverter from 1 to 2 revolutions per minute. The standard version (Model FPR800S) also allows manual wrapping of products with stretch film and has a rotation speed adjustable by frequency inverter from 8 to 12 revolutions per minute. MODEL | FPR800L | FPR800S | FPR1500 Load capacity | 500 kg (increased capacity OPTIONAL) | 500 kg (increased capacity OPTIONAL) | 2000 kg Turntable diameter | 800 mm | 800 mm | 1500 mm Max. package diameter | 700 mm | 700 mm | 1400 mm Height from floor | 500 mm | 500 mm | 500 mm Rotation speed | adjustable with frequency inverter from 1 to 2 rpm | adjustable with frequency inverter from 8 to 12 rpm | adjustable with frequency inverter from 1 to 2 rpm Power supply | 220 V, 50 Hz, single phase | 220 V, 50 Hz, single phase | 220 V, 50 Hz, single phase Installed power | 0.37 kW | 0.37 kW | 0.4 kW Machine size | 1050x800x500h mm (incl. feet) | 1050x800x500h mm (incl. feet) | 2220x1500x500h mm (incl. feet) - Ideal for rotating packages or manual wrapping with stretch film - Slow version for inspection and monitoring (1-2 rpm) - Standard version for manual wrapping (8-12 rpm) - Load capacity up to 2000 kg (depending on model) - Turntable diameter: 800 mm or 1500 mm - Power supply: 220 V, 50 Hz, single phase - Installed power: up to 0.4 kW
