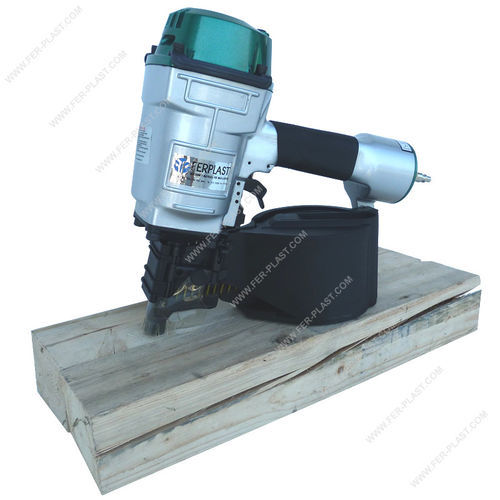

Pneumatisches Nagelgerät CN V.70

für Holz

Pneumatic nailer for CNW series nails 23 - 25 - 28 - 31Our pneumatic nailer CN V.70 is the ideal solution for nailing pallets, boxes, fences, and covers. It is used with nails from the CNW 23 – CNW 25 – CNW 28 – CNW 31 series.The nails of the CNW 23-25-28-31 series are electro-welded nails in a flat coil with a 16° inclination.The usable nails can have a length from 45 to 70 mm, 300 staples per coil, available both with a smooth shank and with ring or screw shank.CNW 23: Head diameter 5.4 ÷ 5.9 mm, shank diameter 2.3 mm. Available in lengths 45-50-55-60-65 mm with smooth and ring/screw shank.CNW 25: Head diameter 6.2 mm, shank diameter 2.5 mm. Available in lengths 50-55-60-65-70 mm for smooth nails, 45-50-55-60-65-70 mm for ring/screw nails.CNW 28: Head diameter 6.7 mm, shank diameter 2.8 mm. Available in lengths 60-65-70 mm with smooth and ring/screw shank.CNW 31: Head diameter 6.9 mm, shank diameter 3.1 mm. Available in lengths 60-65-70 mm for smooth nails, 60-64-70 mm for ring/screw nails.Nailer features:MODELCN V.70Magazine capacity (number of points)225÷300Dimensions323x128x320 mmAir consumption2.08 liters/shotPressure5÷8 barSound pressure at operator position90.8 dB(A)Emitted sound power103.8 dB(A)Weight3.70 kgUsable nails45÷70 mmModel: CN V.70Magazine capacity: 225÷300Dimensions: 323x128x320 mmAir consumption: 2.08 liters/shotPressure: 5÷8 barSound pressure at operator position: 90.8 dB(A)Emitted sound power: 103.8 dB(A)Weight: 3.70 kgUsable nails: 45÷70 mm
