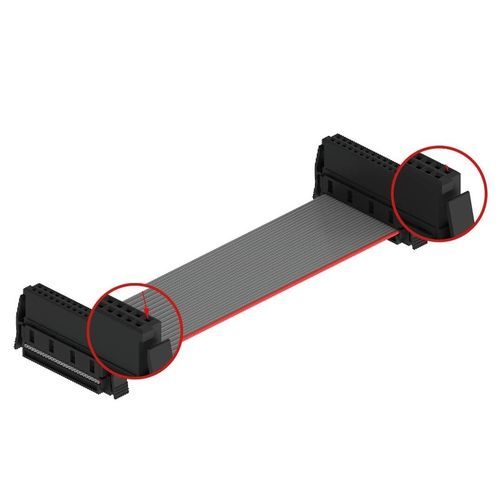

12 Pins
Kabellänge 100 mm
AWG 30/7 Raster Flachbandkabel 0.635 mm
Konfektion in Schneidklemmtechnik (IDC)
Kabeltyp PVC: -30°C bis +105°C (in Ruhe)
farbige Ader auf a1
Anzahl Kontakte - 12
Anschlusstechnik - IDC
Betriebstemperatur - -30°C bis + 105°C
Isolierkörper - LCP, UL 94 V-0
CTI Wert
IEC 60112 - 175
Kontaktmaterial - Kupferlegierung
Kontaktbeschichtung - Au über PdNi über Ni
Rastermaß - 1.27 mm
Steckkraft pro Kontakt - ≤ 0.5 N
Ziehkraft pro Kontakt - ≥ 0.1 N
Lebensdauer
IEC 60512-9-1 - Gütestufe 1: 500 Steckzyklen
Betriebsstrom - 1.2 A bei 25°C
Luft- und Kriechstrecke - min. 0.4 mm
UL file - E130314
Umwelt - RoHS konform
