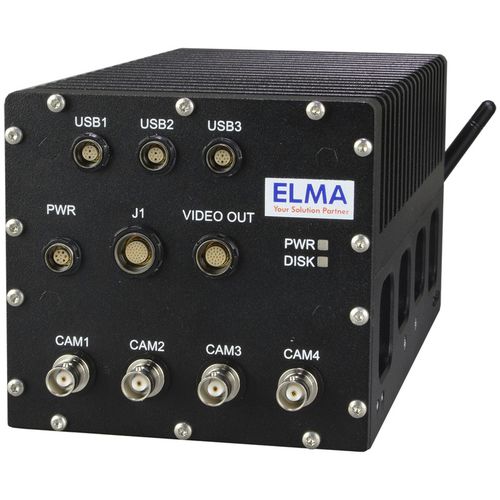

FlexCom small wurde in einem robusten, konduktionsgekühlten Gehäuse entwickelt und ist eine konfigurierbare, COM-Express-basierte Embedded-Computing-Plattform. Ein Video-Capture-Board ist mit einer HD-SDI-Kamera verbunden.
Produktmerkmale
CPU Optionen i5-6300U, 2,4/3,0 GHz, 15 W, 8GB DDR4 So-DIMM
Netzteil 16-80 VDC Eingang, 75 W, galvanisch getrennt, EMI-Filter integriert, MIL-STD-704F
Speicher SSD M2 64GB
Front-E/A: 3x USB; 1x Display Port; 2x GbE; 4x GPI; 4x GPO; 2x UART (RX / TX)
E/A-Anschlüsse: 1x 40 pol. ODU / AMC; 1x 27 pol. ODU / AMC; 3x 12 pol. ODU / AMC; 1x 9 pol. ODU / AMC
4x Mini-PCI-e und ein M.2-Anschluss für die Speicherung
Betriebstemperaturbereich: -45°C bis +70°C
Erfüllt MIL-STD-810G und MIL-STD 461
---
