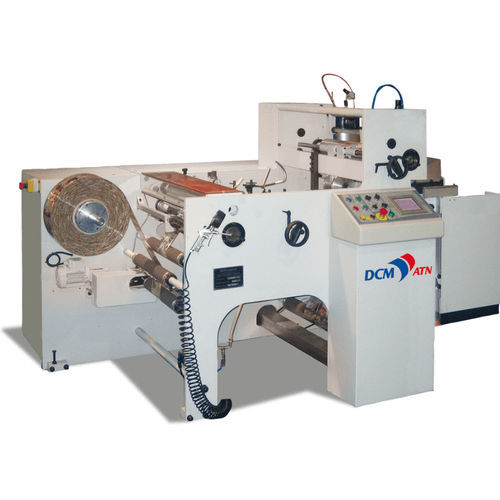

Sleeves forming machine. The DCM Sleeve 3 converting machine is the market referencewith over 500 machines supplied since 1985.This model is the best way to addressthe shrinkable sleeves market !
TECHNICAL DATA
• Mother reel web width : 100 to 610mm (option 50mm)
• Maximum mother reel diameter : 610mm
• Lay flat sleeve width : 50 to 300mm (option 20mm)
• Rewind diameter : 610mm
• Maximum production speed : 500m/min
• Adjustable forming table
• Automatic electronic regulator of the solvent flow to the machine speed
• Automatic web guide aligner
• Touch screen machine control interface
Options
- Longitudinal perforation
- Tear tape applicator
- Quality control
- Homelt application
APPLICATIONS
• Shrinkable sleeves
MATERIALS
• Shrinkable film
• in PET, PVC, OPS, PLA
• from 28 up to 100µm
