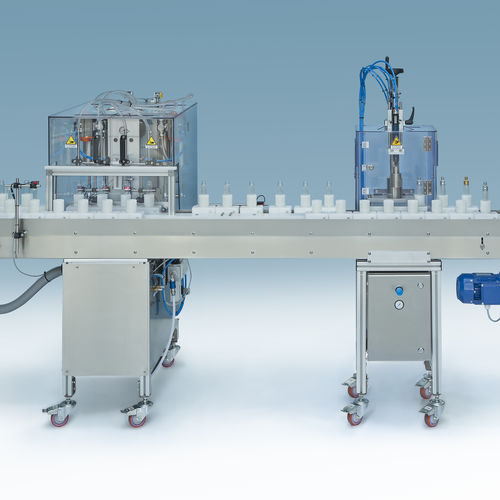

Automatische Füll- und Verschraubmaschine FC19

für Glasflaschenfür Kunststoffflaschenfür Parfüm

AUTOMATIC VOLUMETRIC FILLING AND SCREW TIGHTENING MACHINE, IDEAL FOR HAND SANITIZER GEL PRODUCTION FC19 machine is built for packaging liquid or gel consistency products. The product is filled into bottles through volumetric pistons, and then sealed with screw caps. It has the following construction: - A main aluminium structure - A transport belt allowing the movement of the bottles inside pucks The insertion of bottles and caps is manual. Motion is operated pneumatically and managed by an electronic system, the control system is contained in a pulpit connected to the main structure of the machine. The electric motor supply and control panel are also fitted on the same structure. The Automatic machine FC19 can be supplied with: - A Filling station made by no.2 or no.4 volumetric filling pistons to choose from 50ml up to 500ml - A Screw tightening station or Pressing station upon request Standard Dimensions: 300x110 cm Height: 150 cm + adjustable feet Electrical system: Supply voltage: 400 V 3P N PE Frequency: 50 Hz Maximum absorbed power: 1.2 kVA Pneumatic system Air consumption: 200 Nl/min Minimum pressure: 4 bar Recommended pressure: 6 bar
