Schleifring zur Leistungs- und Signalübertragung / Kapsel / für medizinische Geräte / für Kräne
LPM-30A JINPAT Electronics Co., Ltd.

{{requestButtons}}

Eigenschaften

  • Typ:

    zur Leistungs- und Signalübertragung

  • Konstruktion:

    Kapsel

  • Anwendung:

    für medizinische Geräte, für Kräne

  • Material:

    Metall

  • Weitere Eigenschaft:

    mit Lärmschutz¨, Hochstrom, hohe Drehzahl, Miniatur, mit Goldkontakten, kompakt

  • Rotationsgeschwindigkeit:

    300 rpm (1.885 rad.min-1)

  • Strom:

    2 A

  • Spannung:

    240 V

  • Anzahl Kontakte:

    Min: 2 unit

    30 unit

    Max: 30 unit

Beschreibung

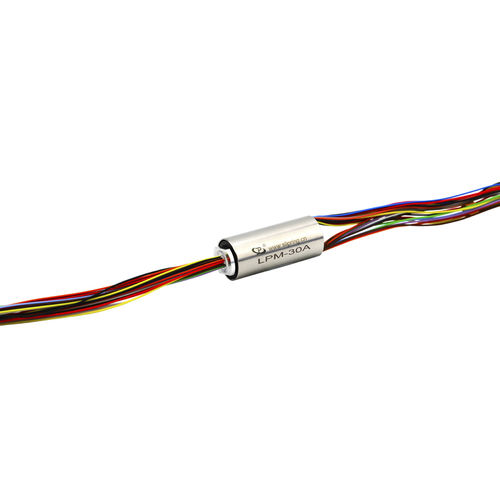

LPM-30A
Miniature Slip Ring

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.


Features
1. 30 circuits models
2. 2 amps per circuit, 240VAC/DC
3. Precision assembly to provide exceptional rotational life
4. Speed up to 300 rpm continuous
5. Gold-Gold contacts
6. Flexible, color-coded, silver-plated, lead wires
7. Superior handling of low level control signals
8. Metal housing optional

Main Application

1. Electrical test equipment
2. Manufacturing and process control equipment
3. Indexing tables.
4. CCTV pan / tilt camera mounts
5. Robotics, rotary sensors, urgent illumination equipment
6. Exhibit / display equipment.
7. Aviation, military, instrument medical equipment
8. Mini-type wire-rolling machine
9. Closed-circuit control

Advantage

1. Low torque minimizes system torque budget
2. Compact design to fit in the most demanding space.
3. Smooth running
4. Low electrical noise
5. Quick shipment per your urgent requirement
6. 360°continuous rotation
7. Addition of special components

If you want to know more details about JINPAT Slip Rings, please contact us with your special needs!
