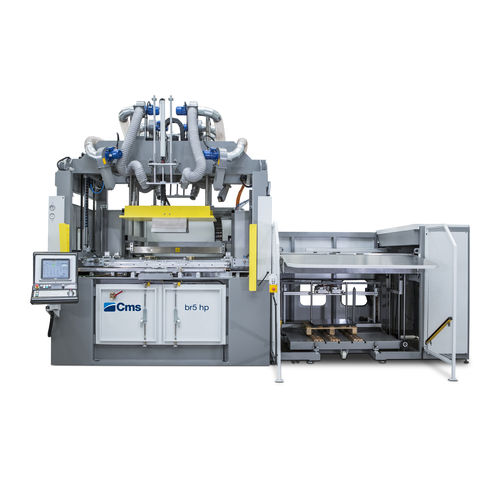

Thermoformmaschine für Kunststoffplatten / automatisch / Vakuum
BR5HP CMS S.p.A.

{{requestButtons}}

Eigenschaften

  • Typ:

    für Kunststoffplatten

  • Merkmal:

    automatisch

  • Weitere Eigenschaften:

    Vakuum

  • -Not Tr-:

    Max: 3.500 mm

    Min: 1.500 mm

  • -Not Tr-:

    Max: 2.500 mm

    Min: 1.000 mm

Beschreibung

The BR / HP series - manual or automatic sheet loading thermoforming machines – is characterized by an extremely innovative parts management system. Loading of the sheet to be formed, the forming operation, and the piece unloading are carried out automatically. Quick mould change , complete diagnostics, networking and opportunity to work with vacuum and pressure even on the upper mould , all make the BR5 / HP series an absolute reference point entire thermoforming industry.

Rapid change of machine settings , with the integrated software systems
Clamp frame dimensions are stored to further speed up the adjustment of the upper frame
All movements are motorised. The mould-plate has a servo movement managed via PC with speed and positioning information that is stored for future fast setups. The patented mechanics work using two electronically coupled servomotors (gantry), ensuring a quick and precise positioning of the mould and a high level of pressure
Lower and upper mould base have gantry systems with coupled axes and ball screws
Dimensions: from 1.500 mm x 1.000 mm to over 3.500 mm x 2.500 mm
FIELDS OF MACHINE APPLICATION

Mass transport
Automotive
Earthmoving machines
Healthware and wellness
Caravan
Trains
Sanitary ware
Marketing and distribution
Refrigeration
